Xhorse VVDI MLB Tool for VVDI Key Tool Plus and VVDI2
VVDI MLB-TOOL Tester:
✅ Excel in key adding for MLB models
✅ No Need to Remove the Chip
✅ Wireless Key Generation for Ultimate Convenience
✅ Immo Detection Made Easy
✅ Compatilility with Original Keys and Xhorse Specialized Keys
✅ Rewrite Uninitialized Key IDs
✅ No Need for On-Vehicle Data Collection
✅ Works with VVDI2 and VVDI Key Tool Plus (VVDI2 requires VV-05 MQB and VV-02 VAG IMMO5 license activated)
✅ No points required when using VVDI MLB specialized key
✅ Software Update online, current version 1.0.3.0
✅ Operating system: Win10, Win11
✅ VVDI MLB Tool User Manual
It does not copy a key. Process to Add a Key with MLB Tool: Reading data, making dealer key, learning key.
It just calculates the CS from that key, in order to make a dealer key with other key. And then add key by obd always with vvdi2 or Key tool plus, just load the file MLB tool makes you save and with that CS it will start key learning process.
The following two scenarios require points deduction for MLB calculations:
1. When adding keys, points will be deducted to calculate the IMMO data.
2. When doing key recovery, the second-hand key has been initialized and unlocked, but does not have the IMMO data of the key. You need to deduct a few points to collect and calculate the IMMO data of the key before it can be restored.
![xhorse vvdi mlb tool](https://www.vvdi.com/uploads/files/products/24186/xhorse-xdmlb0-vvdi-mlb-tool-add-key-vag-mlb-24186-vvdi.jpg)

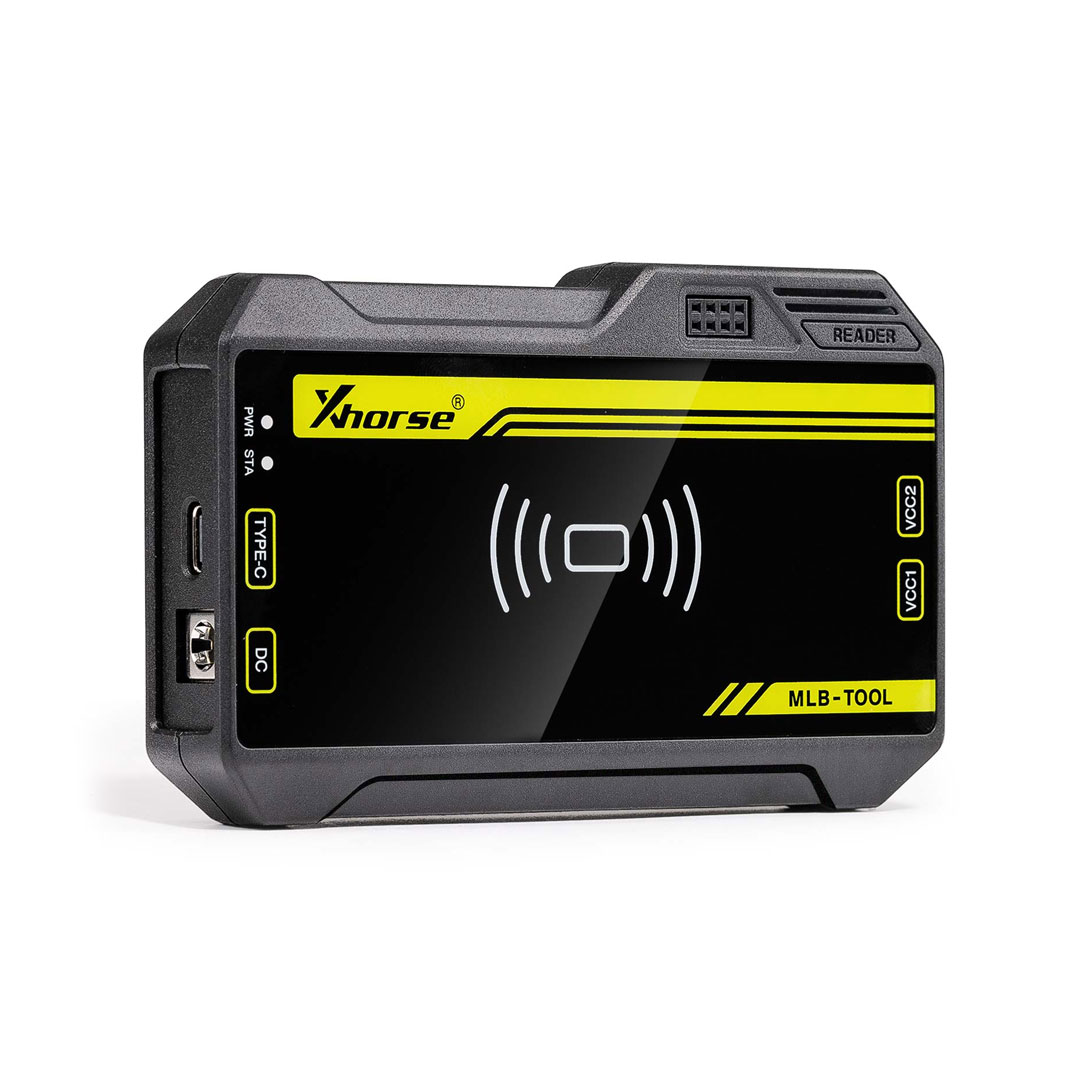

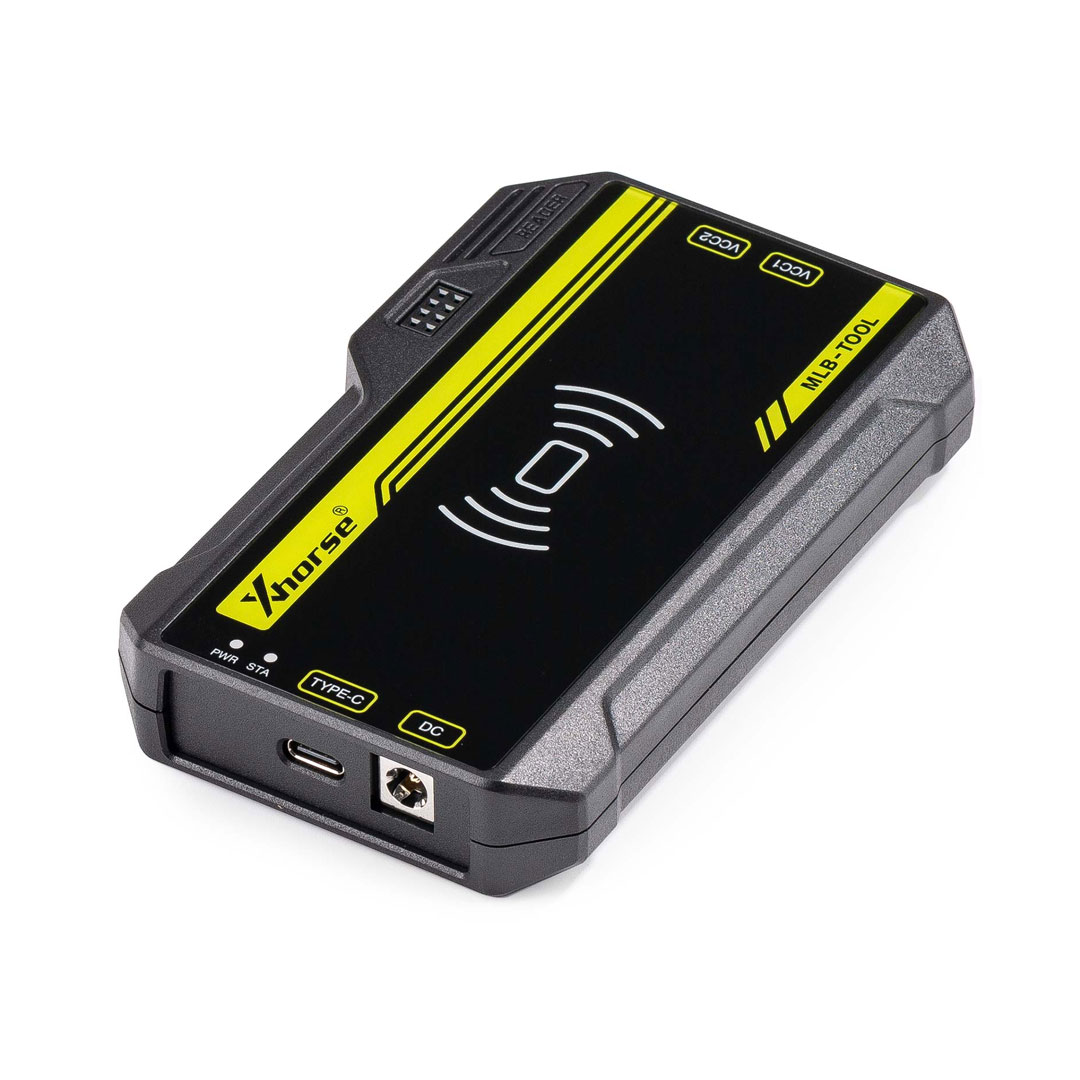

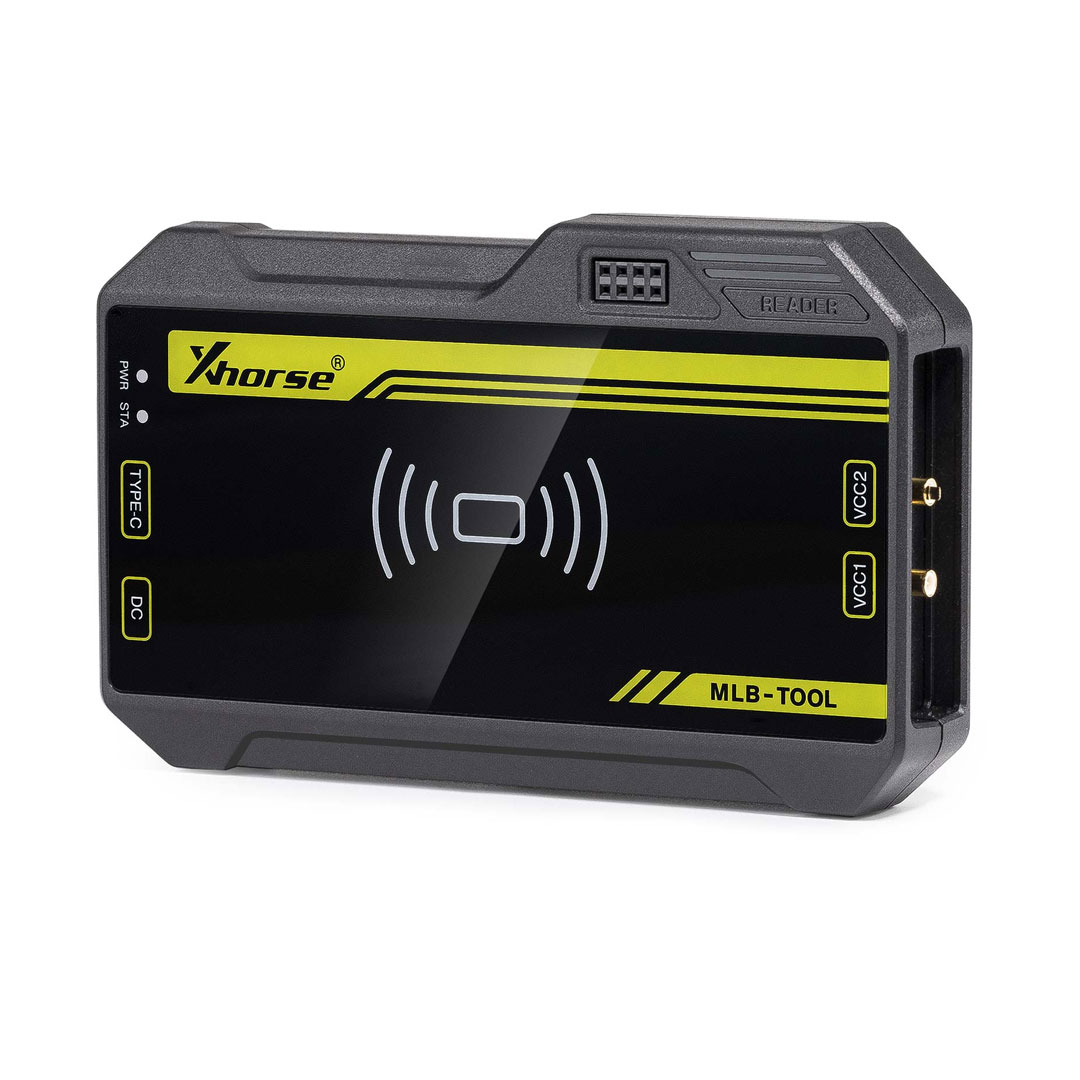

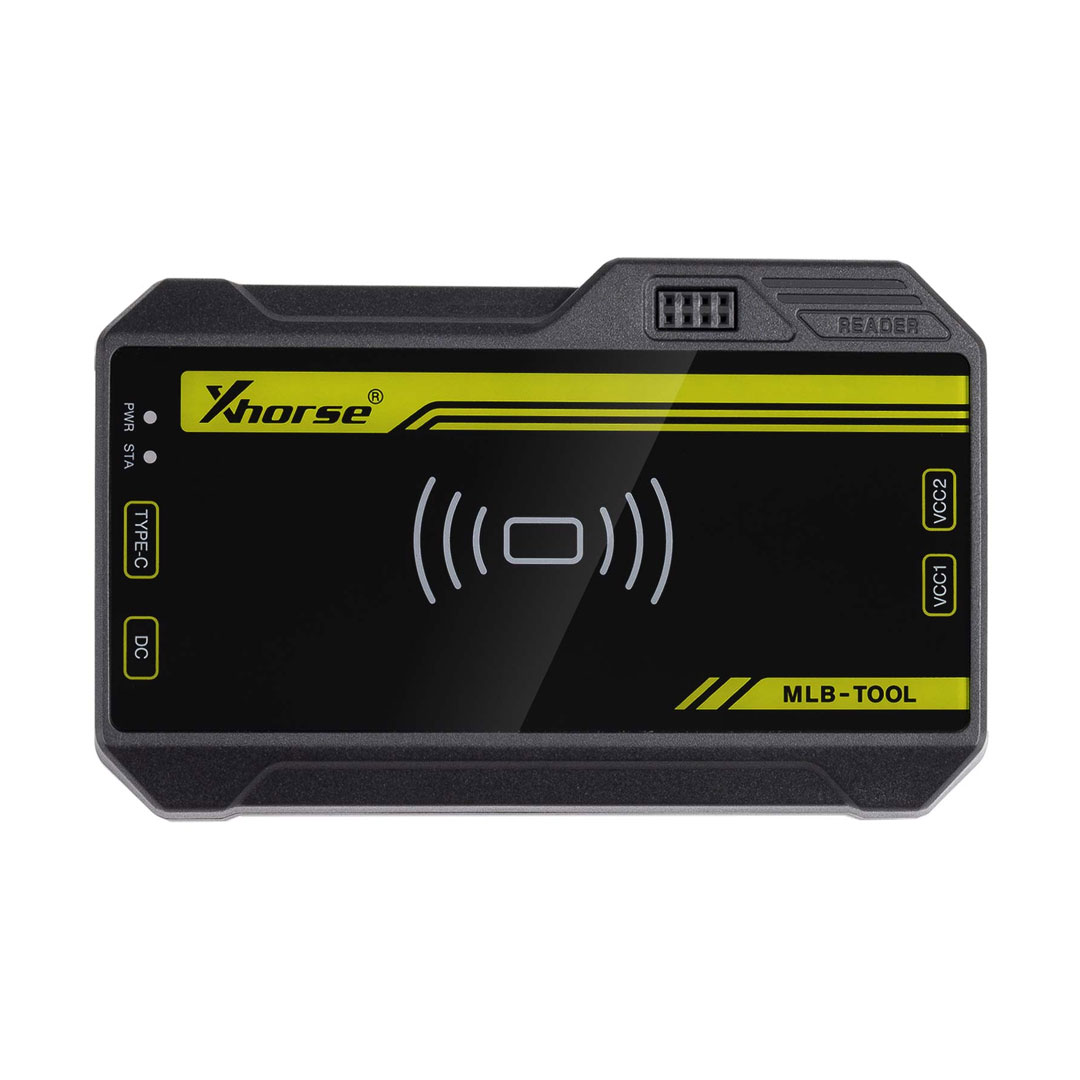

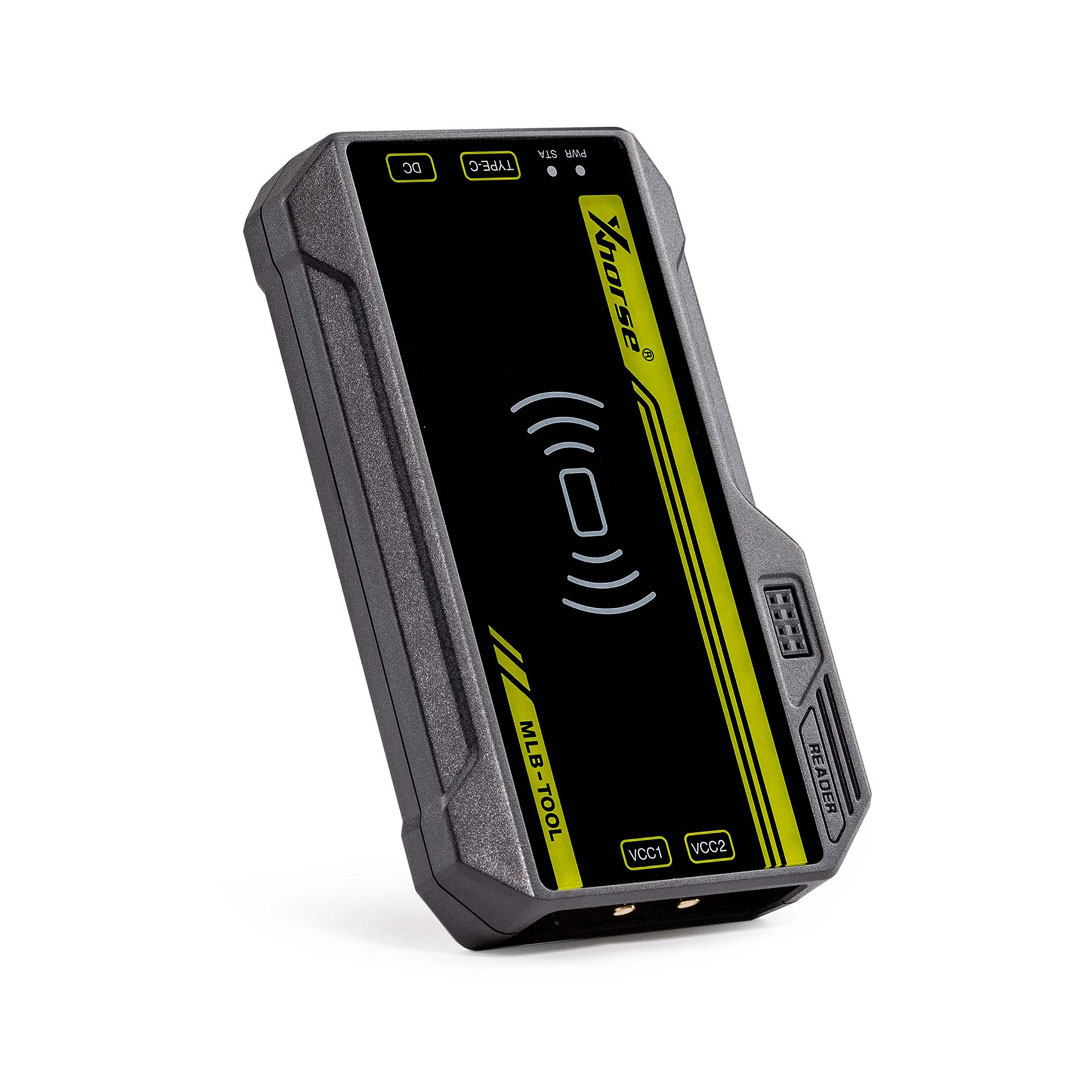

Xhorse XDMLB0 VVDI MLB Tool Add Key VAG MLB Features:
Excel in key Adding for MLB Models
Support adding keys for Audi, Porsche, Volkswagen, Lamborghini, Bentley, and other MLB vehicle models
No Need to Remove the Chip
Key data calculation requires only the disassembly of the key shell, with no need to remove the chip. Integrated with a 22k reader, it enables wireless key reading and writing without shell removal.
Wireless Key Generation for Ultimate Convenience
Generate original dealership keys and Xhorse specialized keys wirelessly.
Immo Detection Made Easy
Built-in Immo detection module supports wireless key recognition
Compatibility with Original Keys and Xhorse Specialized Keys
Support brand-new original keys (uninitiaIized/initiaIized) and can verify the status of the original keys. Support VVDI MLB specialized keys for unlimited reuse.
Rewrite Uninitialized Key IDs
Support rewriting uninitialized original key IDs.
No Need for On-Vehicle Data Collection
Simply collect key data, upload for calculation, and obtain Immo data without needing to access the vehicle.
Xhorse XDMLB0 VVDI MLB Tool Add Key VAG MLB Requirement:
Original key
Unlocked uninitialized with id Can generate key directly to learn key
Unlocked and uninitialized without id Allows to change the id once.
Unlocked and initialized Can restore key to unlocked and uninitialized state by calculating anti-theft data No id
Locked and initialized original key cannot be unlocked.
or VVDI dedicated MLB key coming soon.
MLB-Tool Software
Users are required to bind MLB-Tool with Xhorse App to perform immo data online calculation. Go to Special Function- Bind Device and scan QR code to bind device.
![vvdi mlb tool software 1](https://www.vvdi.com/uploads/files/products/24186/24052917169767326859.jpg)
![vvdi mlb tool software 3](https://www.vvdi.com/uploads/files/products/24186/24052917169767399756.jpg)
MLB PC Software is required when you use with vvdi2. If use with vvdi key tool plus, connect MLB-Tool with KTP via the OTG converter. Then you collect key data, make dealer key and learn key all in the key tool plus.
![connect vvdi mlb tool with vvdi key tool plus](https://www.vvdi.com/uploads/files/products/24186/24062817195669646931.jpg)
VVDI MLB Tool MLB Wiring Diagram Type 1 to Type 6
No need to remove chip. But need to remove two capacitors (100nF) and solder cable to original key according to different color as diagram.
Xhorse XDMLB0 VVDI MLB Tool Add Key VAG MLB FAQs
Q. Does this tool need tokens?
A. It depends on the key you use.
- Collect the original key (without our VVDI MLB remote key), will require 200 points
- Collect the original key (but have our VVDI MLB remote key), identify the VVDI key first, and then you can avoid deducting points. (1 VVDI key can only be identified once)
- Collect the VVDI MLB key, no points are required
Q. In what scenarios does it requires tokens?
A. 1. When adding keys, points will be deducted to calculate the IMMO data.
2. When doing key recovery, the second-hand key has been initialized and unlocked, but does not have the IMMO data of the key.
You need to deduct points to collect and calculate the IMMO data of the key before it can be restored.
Q. Does the original key for XHORSE MLB TOOL have to be a brand new one, or can it be a used one?
A. For the original key. Here are several occasions.
- Unlocked, uninitialized, with ID, can generate and learn the key directly
- Unlocked, uninitialized, but without ID, can change ID for once
- Unlocked, initialized, can restore key to unlocked, uninitialized, no ID state by calculating anti-theft data
- Locked, initialized, this original car key cannot be unlocked
Q. Is there a manual or vidoes on how to use it?
A. Yes, you can have a look at this MLB Tool User Manual English
Q. The MLB PC software is only required when using it with VVDI2, right?
A. yes, that is right. MLB PC software is needed when used with VVDI2. When using with a KTP, you can use an OTG adapter to connect. like this

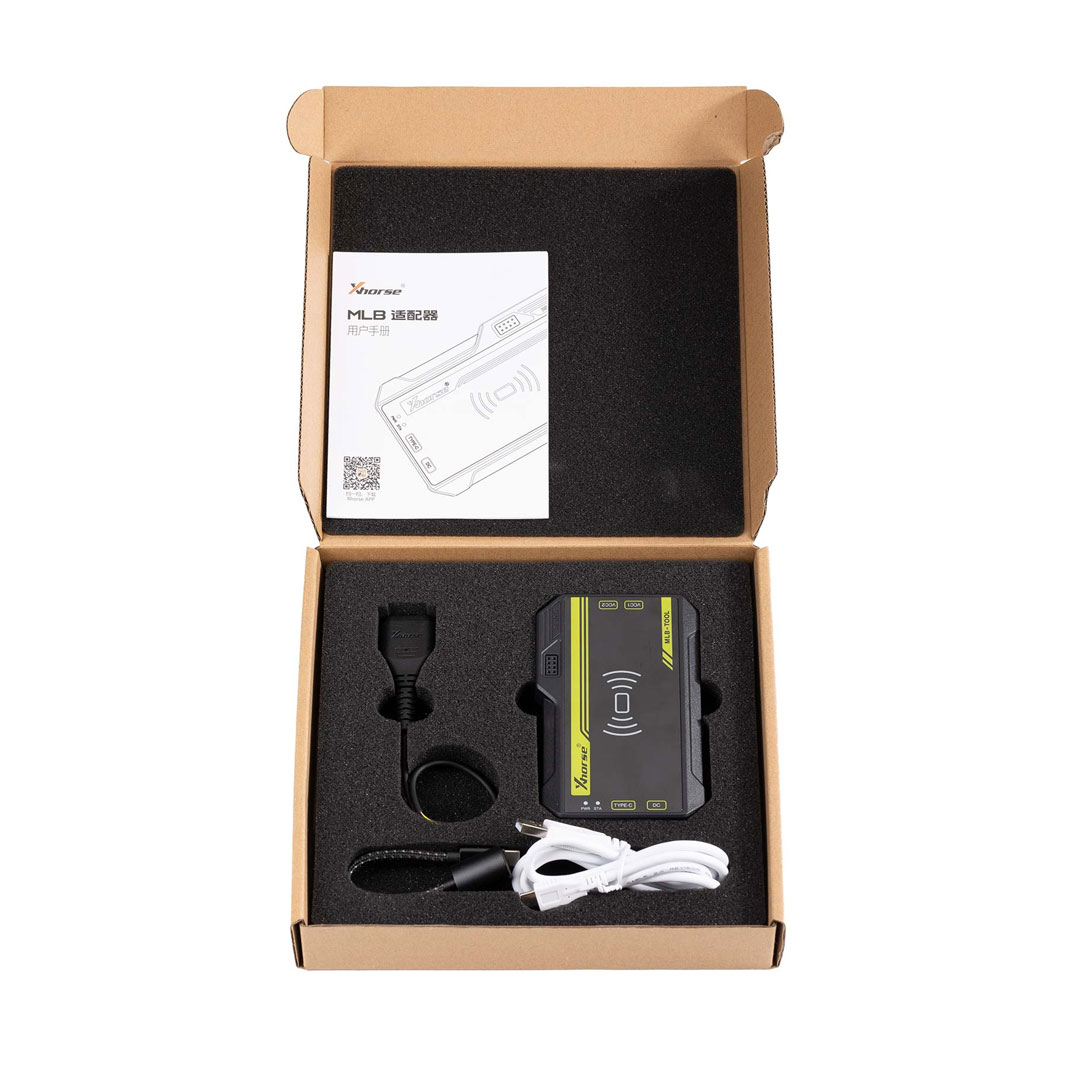

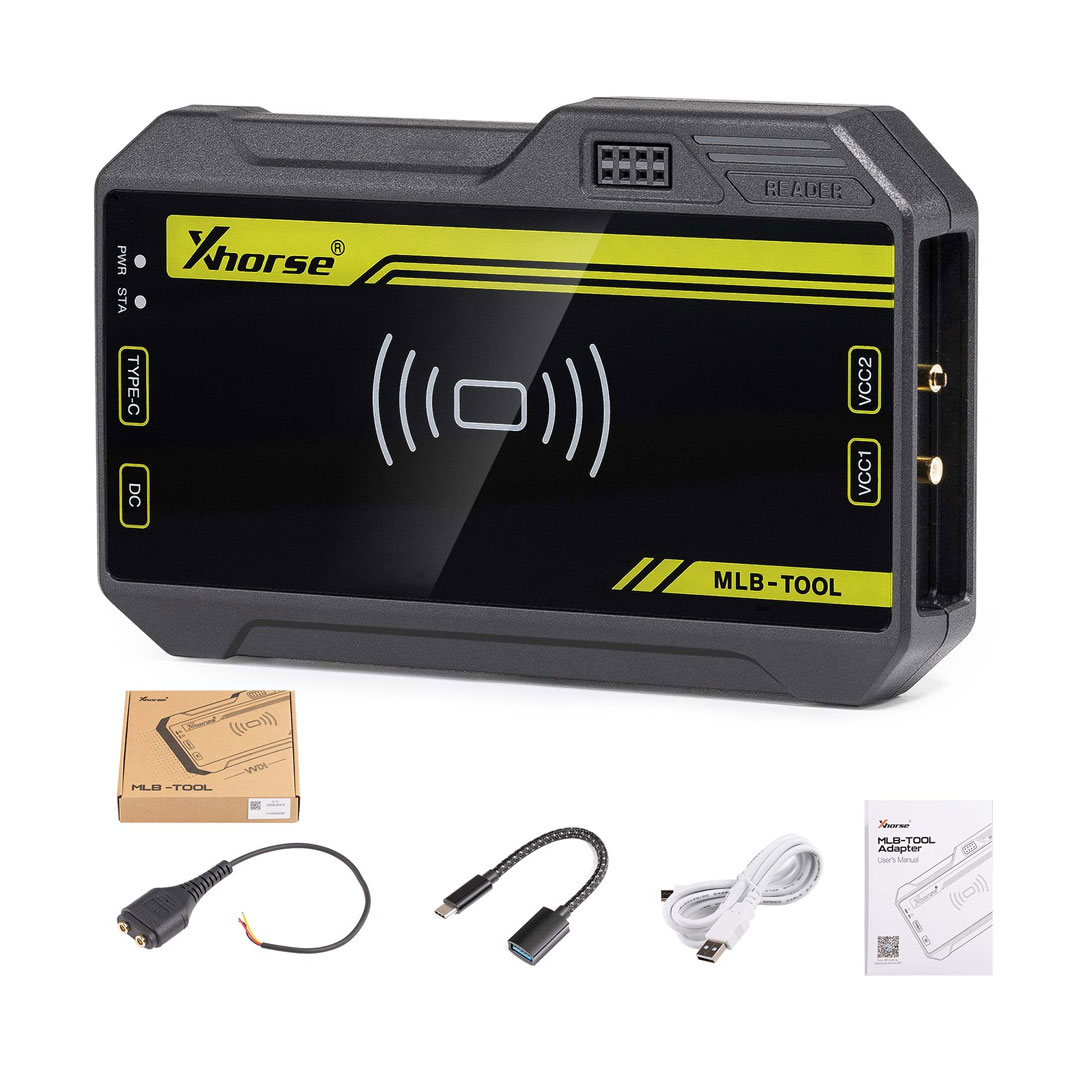

Xhorse XDMLB0 VVDI MLB Tool Add Key VAG MLB Package List:
1pc x MLB tool
1pc x MLB cable
1pc x USB type C cable
1pc x OTG adapter
1pc x user manual
