Mercedes-Benz Full Test Platform Pro for EZS EIS ESL ELV Dash Gateway ECU TCU VGS ISM

Mercedes-Benz Full Test Platform Pro Manual

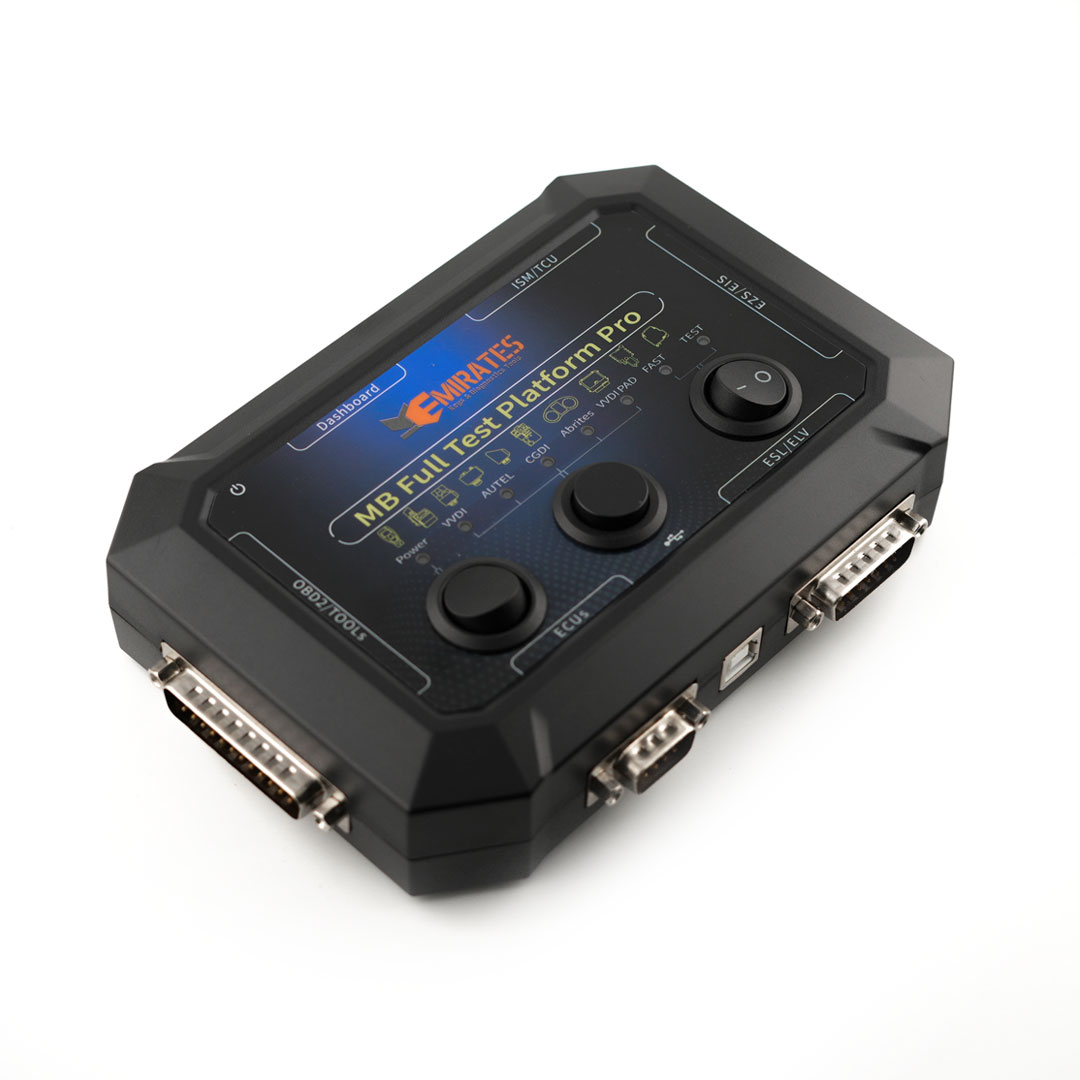

Mercedes EIS Tester Overview:

The Mercedes EIS & ESL testing tool designed for on-bench testing of Electronic Ignition Switch EZS (EIS), Electronic Steering Lock ESL (ELV), Mercedes EIS bypass, Dashboard & gateway it comes with built-in Electronic Steering Lock ESL Emulator inside and has automatically mode switching between old and new versions of steering lock emulators.

The Mercedes Benz EZS, EIS, ELV, ESL, Dash & Gateway tester enables you to test the Electronic Ignition Switch (EIS / EZS) with the car Electronic Steering Lock (ESL / ELV) or with the Emulator if original ESL / ELV is not available using ESL Emulation mode which is built-in.

You can run Mercedes EZS test for both old (Motorola based EZS) and new (NEC based EIS) units without the car, just connect it with the EIZ ELV test cables and test the EIS or test the keys if they are working & program or repair the steering lock ELV.

The new Generation comes with built-in ESL / ELV Emulator for W204, W207 to test the EIS without the original ESL / ELV (must be programmed before testing)

The Mercedes Benz EIS test platform can be used with most Mercedes key programming devices, and it will help you when you are doing Mercedes EIS repair service, it is much better than all Mercedes EIS ELV test platform & Mercedes EZS tester kit in the market between all Mercedes EZS ESL tester devices

No additional Mercedes EIS ELV test kit / Mercedes steering lock tester is required as it comes with the full range of cables

MB Test Platform Pro Support List

• Dashboard
• ISM
• 7G TCU
• ECUs : CR3.XX CR4.XX CR5 CR6，CR60.XX，SIM271DE2.0 SIM4LKE SIM271KE2.0 CRD.11 CRD2.XX ME9.7 MED17.7.X SIM266 ME2.7，ME2.8
• ESL/ELV: 204 207 212 4P ESL/ELV 169 245 4P ESL/ELV 203 3PIN ESL/ELV 203 211 219 209 906 639 5PIN ESL/ELV 202 208 210 5P ESL/ELV 176 246 447 5P ESL/ELV
• EZS/EIS: 164 251 EZS/EIS 197 212 218 EZS/EIS 166 176 246 447 EZS/EIS 169 245 209 211 171 EZS/EIS 172 204 207 212 EZS/EIS 203 463 639 Vito EZS/EIS 202 208 210 EZS/EIS 215 220 230 EZS/EIS 221 216 EZS/EIS 906 Sprinter Crafter EZS/EIS 205 222 EZS/EIS

MB Test Platform Pro Features:

• Support Work with Xhorse VVDI MB TOOL, AUTEL, CGDI MB, Abrites, Xhorse VVDI Key Tool Plus Pad
• SupportTesting EZS/EIS without ESL/ELV (ESL/ELV emulator)
• Support Reading EZS/EIS file or password without gateway (Gateway emulator)
• Support Testing or renew TCU/VGS, ISM, ECUs
• Support Different programming tools
• Support MB dealer tool diagnostic, coding
• Support ALL FBS3 modules Calculation key password by FAST (Fast Adapter function)

Supported Mercedes EIS / EZS Testing, Mercedes EZS Password Reading:

W208 / W210 (Embedded Emulator)   Support: Read EIS password + ELV test + Obd control

209 / W211 (Embedded Emulator & Embedded Gateway)   Support: Read EZS password + ELV control + Obd control

W169 / W245 (Embedded Emulator & Embedded Gateway)   Support: password reading + Elv control + Obd control

W203 / W639 / VITO (Embedded Emulator)   Support: password reading + Mercedes ESL test + Dashboard control + Obd control

W906 / CRAFTER / SPRINTER (Embedded Emulator)   Support: password reading + Elv control + Dashboard control + Obd control

W215 / W220   Support: EZS password reading + Obd control

W204 / W207 / W212 (W204/W212 Embedded Emulator)   Support: EIS password reading + W204 EIS renew + W204 steering lock control + program ELV Emulator for W204 + Obd control + Dashboard control to test instrument cluster & programming

W164   Support: W164 EIS password reading (Embedded Gateway) + Obd control

W221   Support: W221 EZS password reading + EIS erase password reading + W221 EIS renew + Obd control

W246   Support: W246 EIS password reading + Dashboard control + Obd control

W212   Support: W212 EIS password reading + EZS erase password reading + W212 EIS renew + Dashboard control + Obd control

New – W447 / W176 new model (FBS4 + FBS3)   Support: EIS password reading + Dashboard control + Elv control + Obd control

New – W222 / W205 new model (FBS4 + FBS3)   Support: EZS password reading + Dashboard control + Obd control

Mercedes ESL Testing & Programming Steering Lock ESL / ELV:

W204 / W207 / W212 support read / Write OBD control (EZS / Renew W204 ESL / ELV Testing / ELV Personalize)

W208 / 210 support read / Write OBD control (EZS / ELV Testing platform / ELV Personalize)

W209 / W211 support read / Write OBD control (EZS / ELV steering lock testing / ELV ESL Personalize)

W203 / W639 / VITO support read / Write OBD control (EZS / ELV Testing / ELV steering lock Personalize)

W906 / CRAFTER / SPRINTER support read. Write OBD control (Mercedes EZS, Bypass ELV & Testing original car ELV / ELV Personalize)

NEW – W447 / W176 support read / Write OBD control (EZS / ELV Testing / ELV Personalize)

NEW – GEARBOX ECU

Mercedes-Benz Full Test Platform Pro ECUs Pinout:

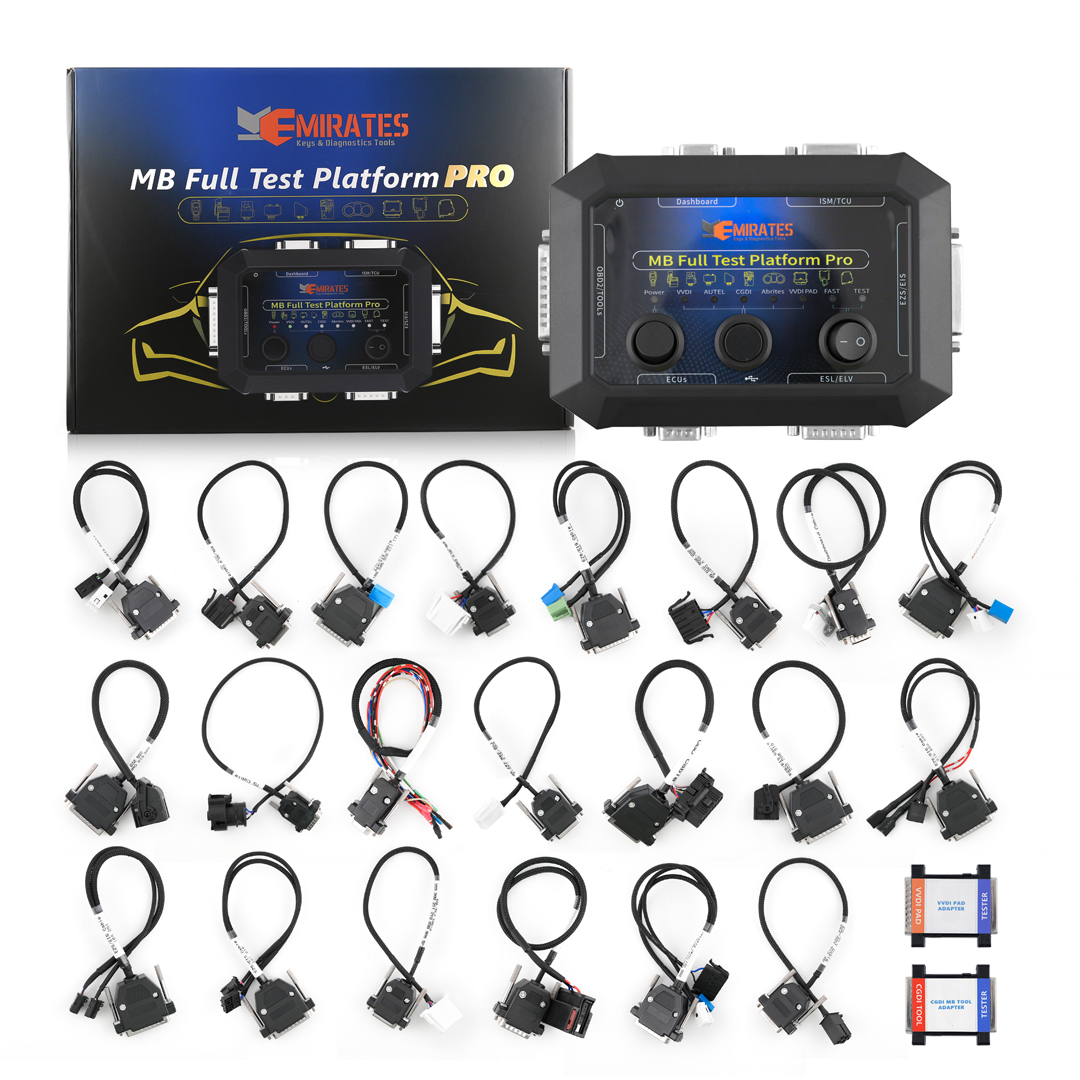

Mercedes-Benz Full Test Platform Pro Packing List:

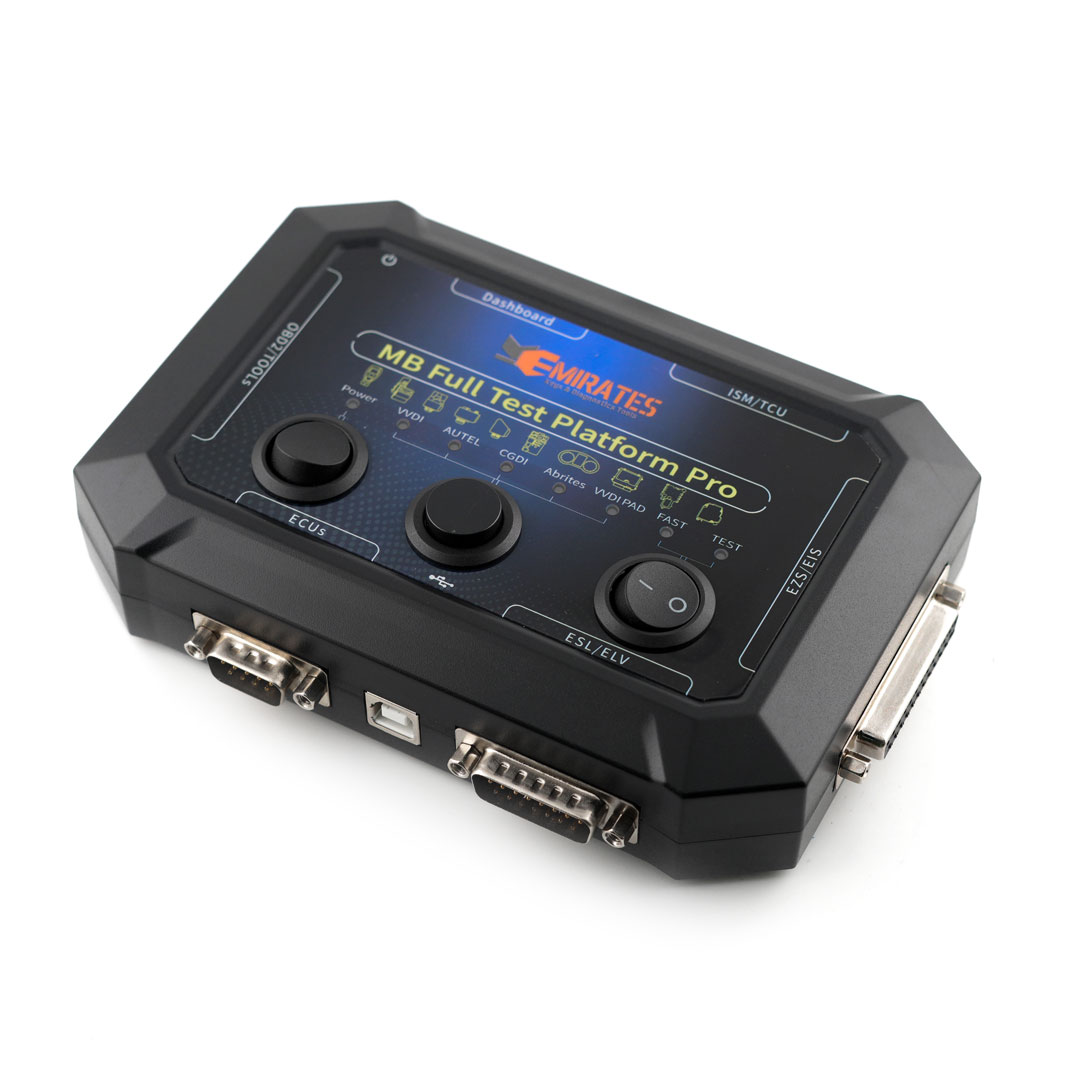

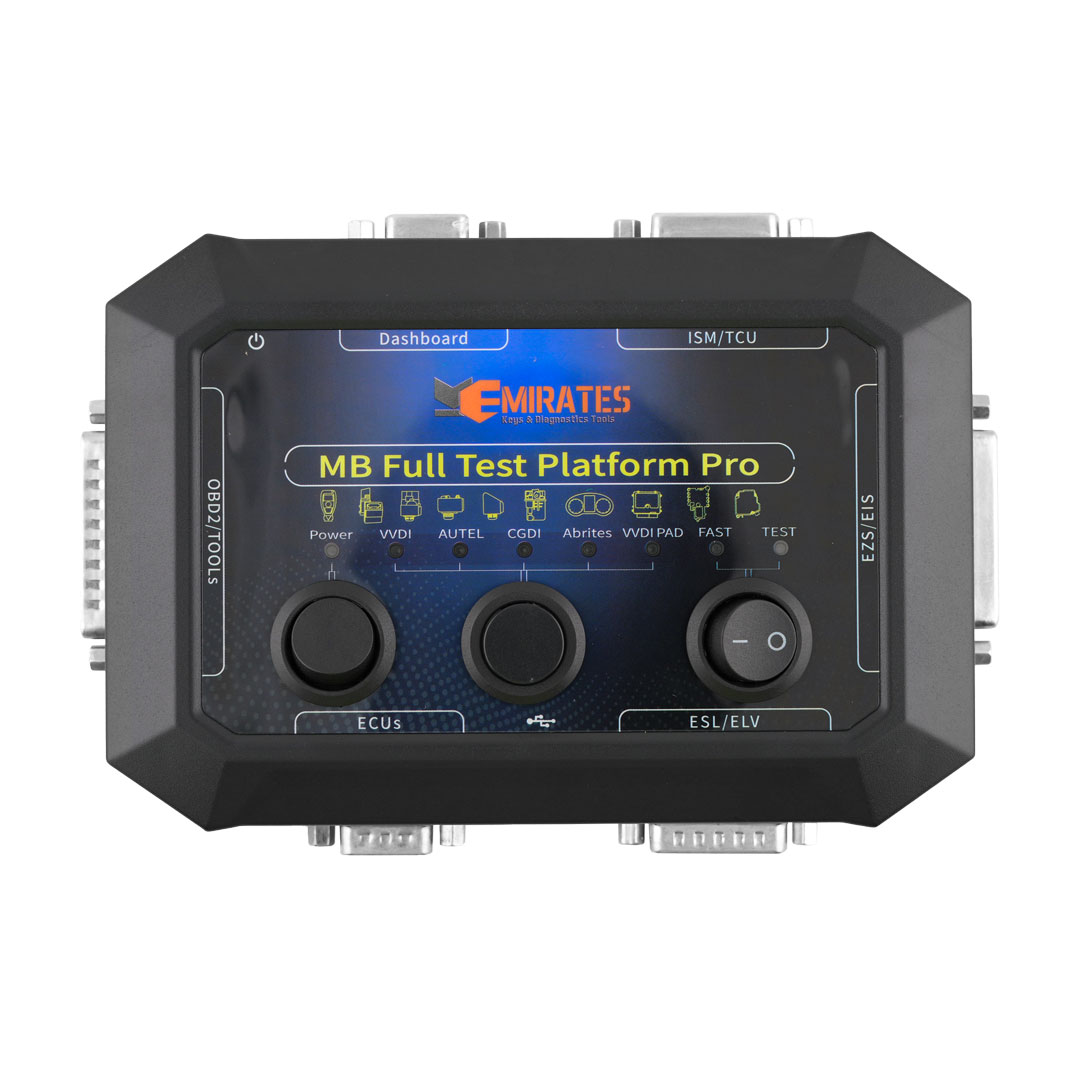

• Tester Box

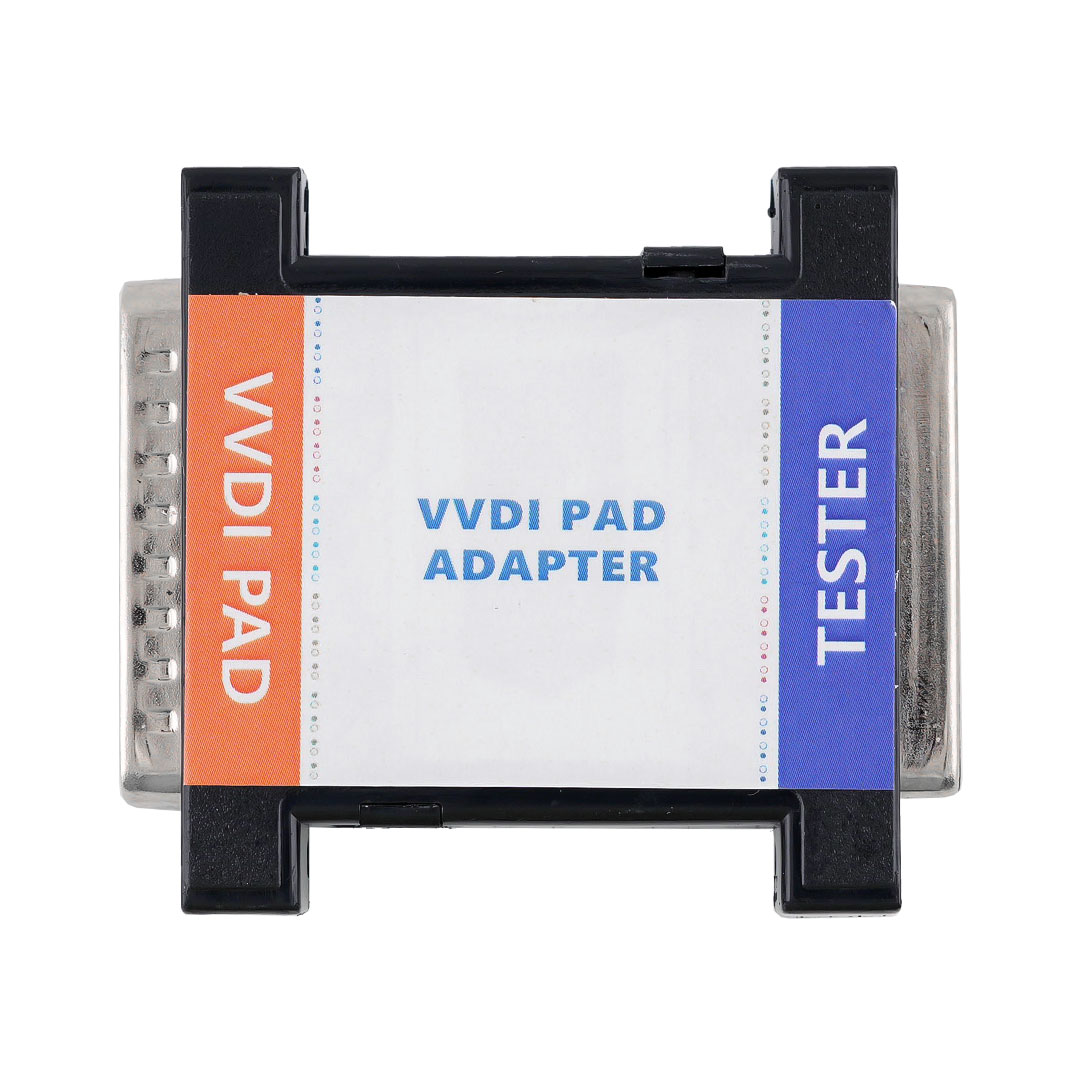

• VVDI KTP ADAPTER

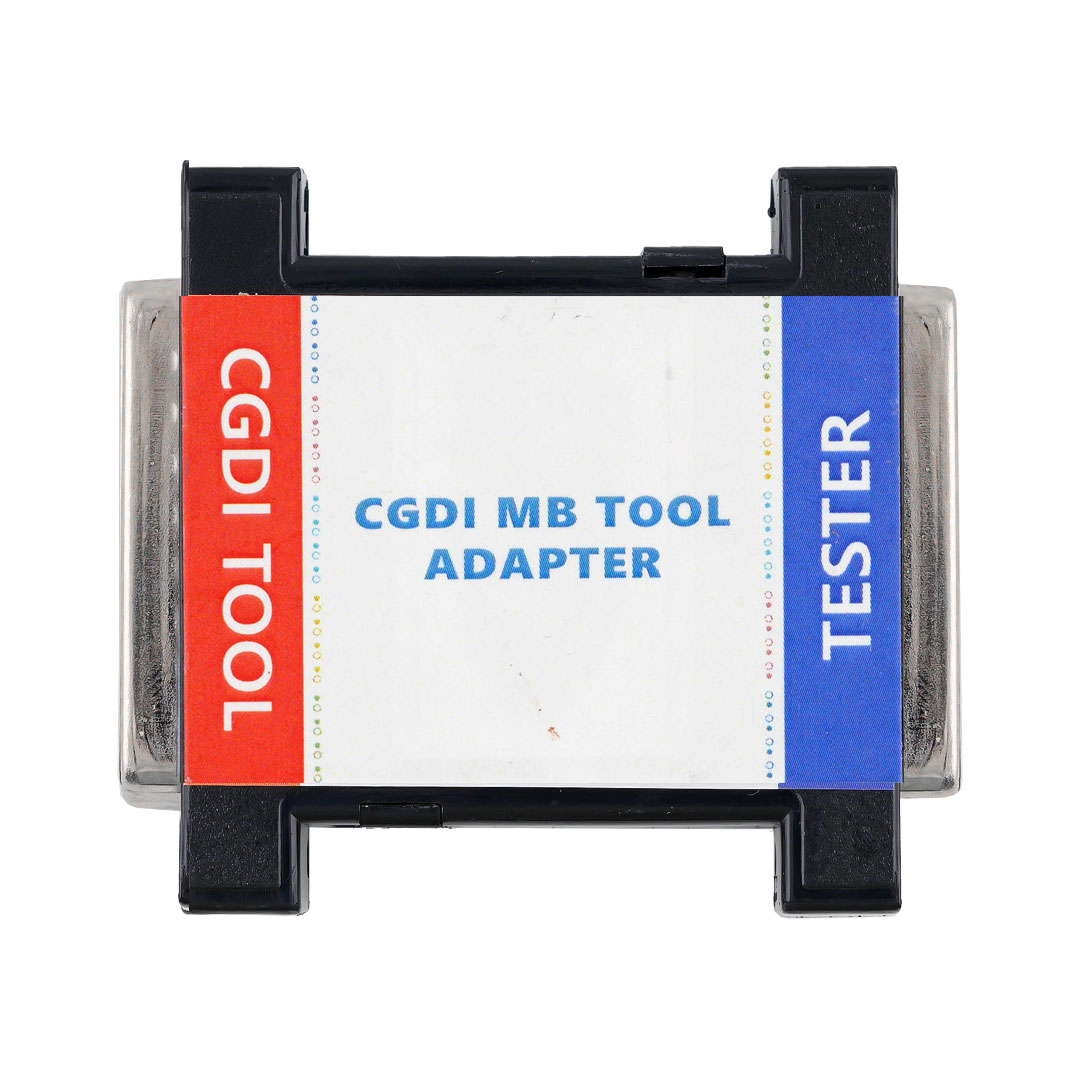

• CGMB ADAPTER

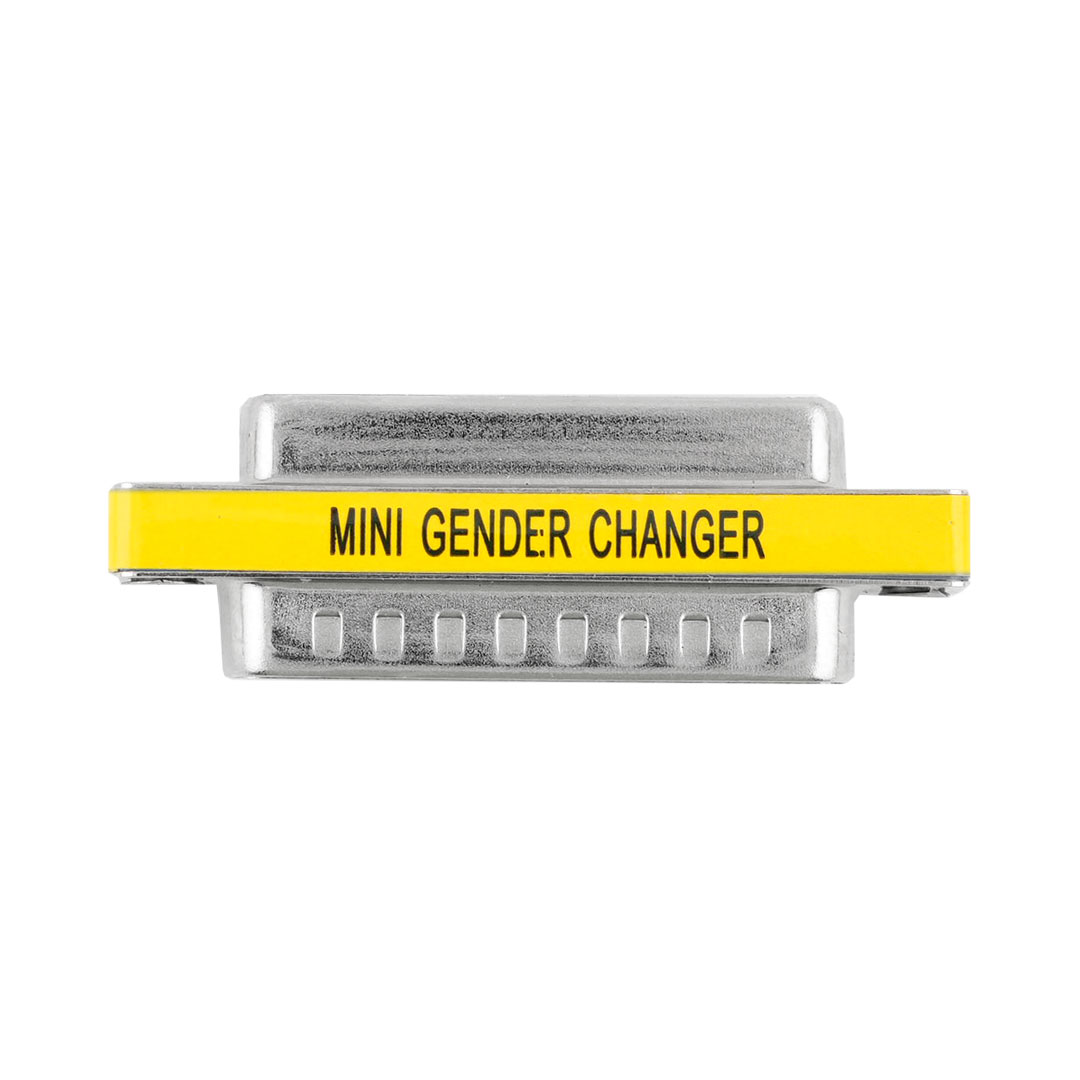

• DB25 MALE TO FEMALE ADAPTER

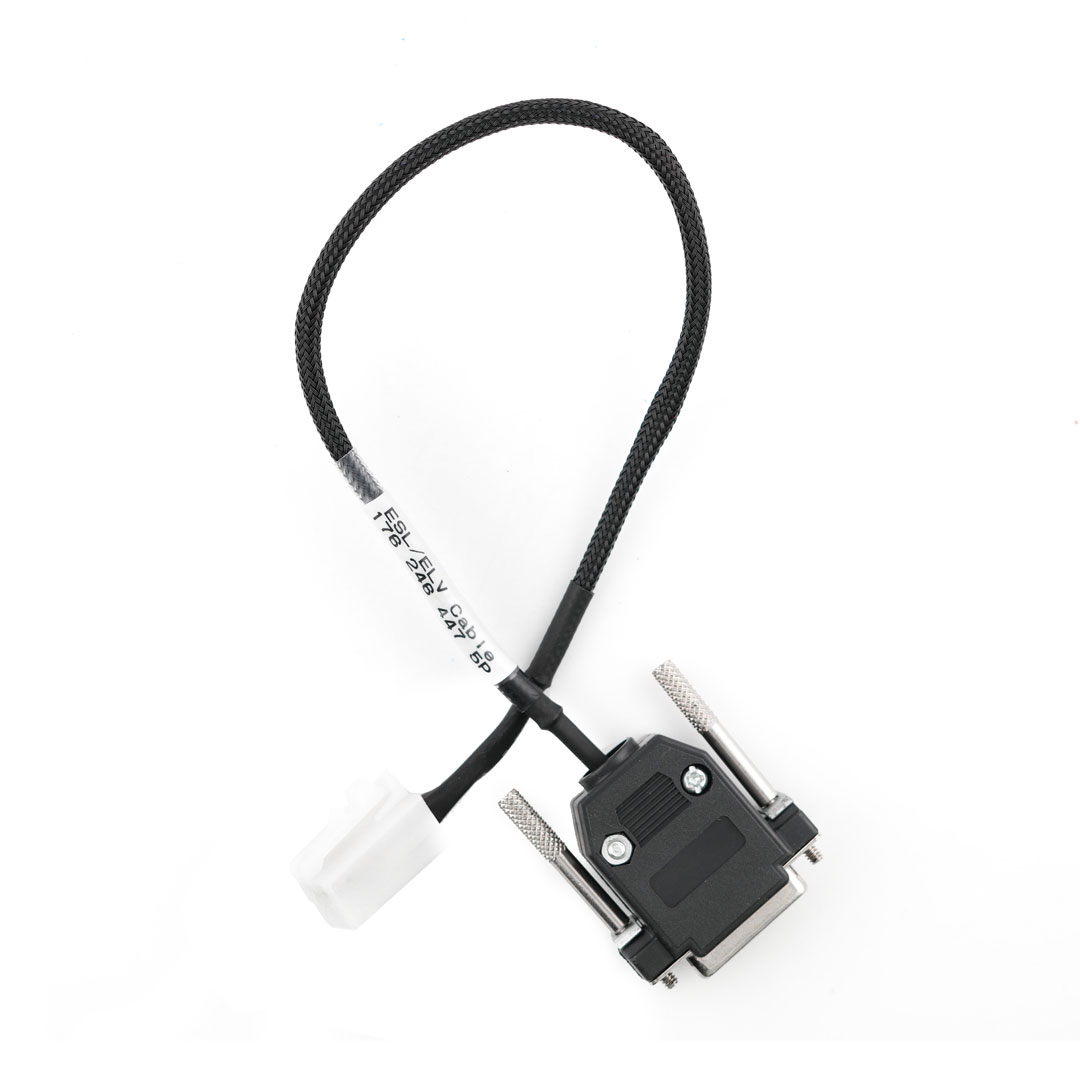

• 176 246 447 5P ESL/ELV Cable

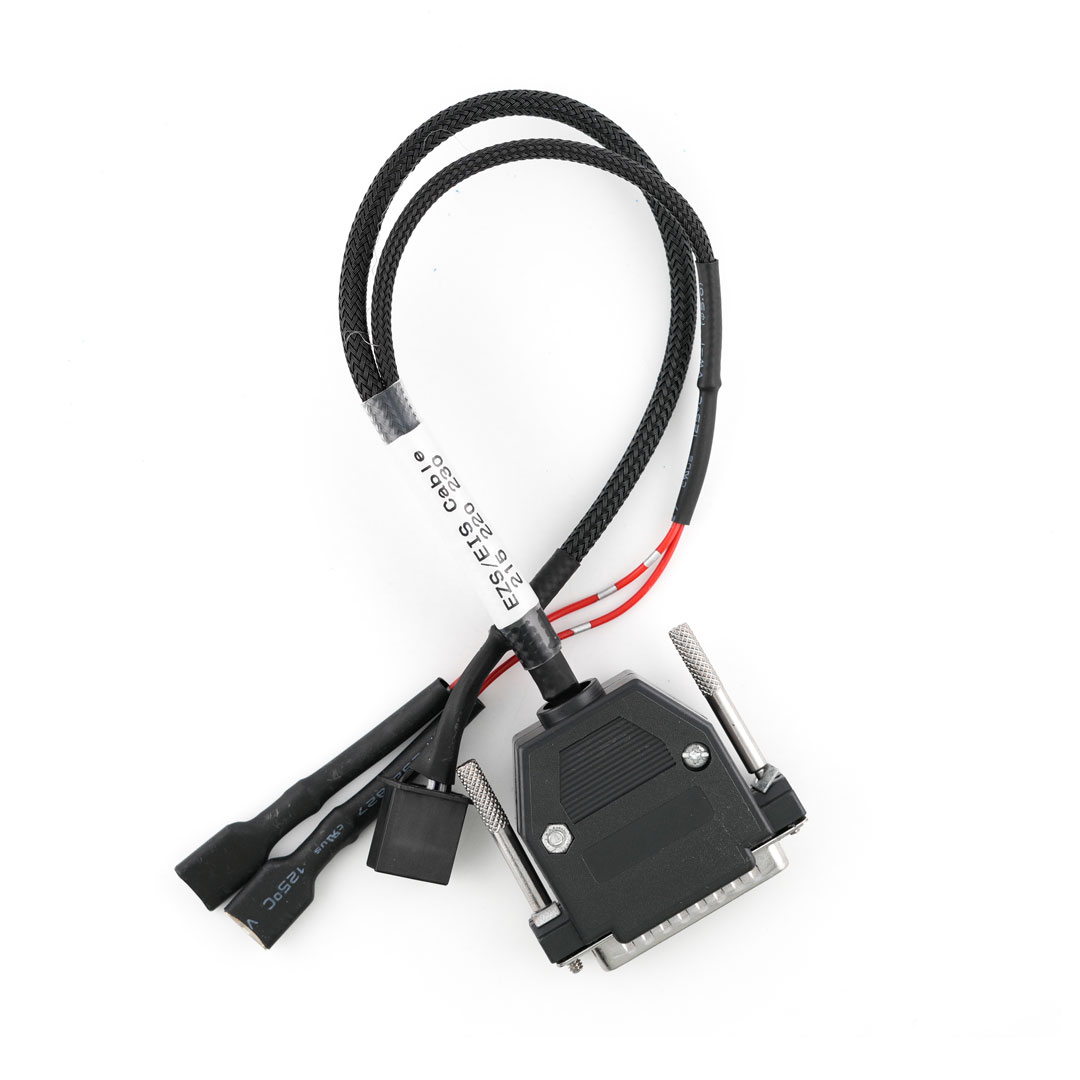

• 215 220 230 EZS/EIS Cable

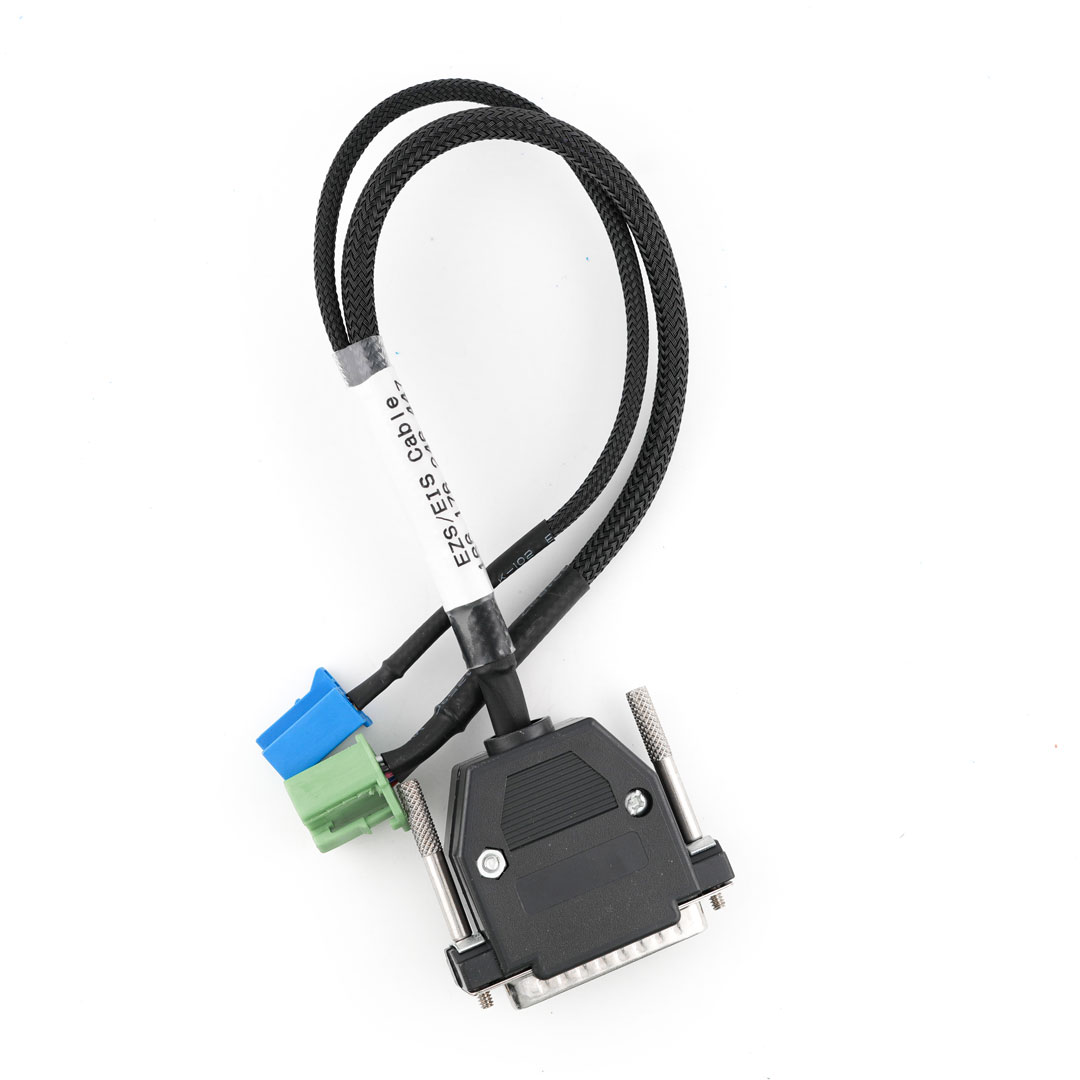

• 166 176 246 447 EZS/EIS Cable

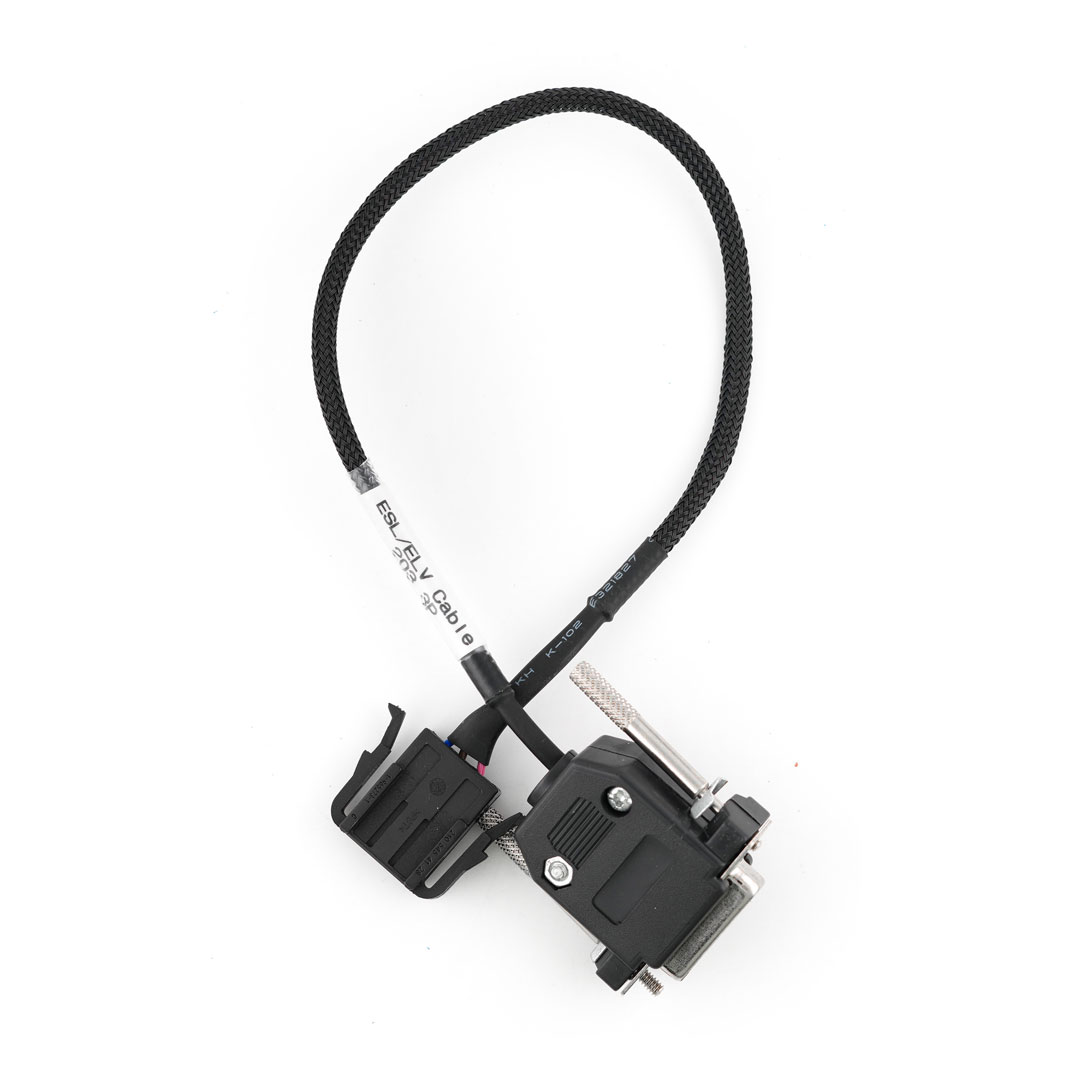

• 204 207 212 4P ESL/ELV Cable
• 172 204 207 212 218 EZS/EIS Cable

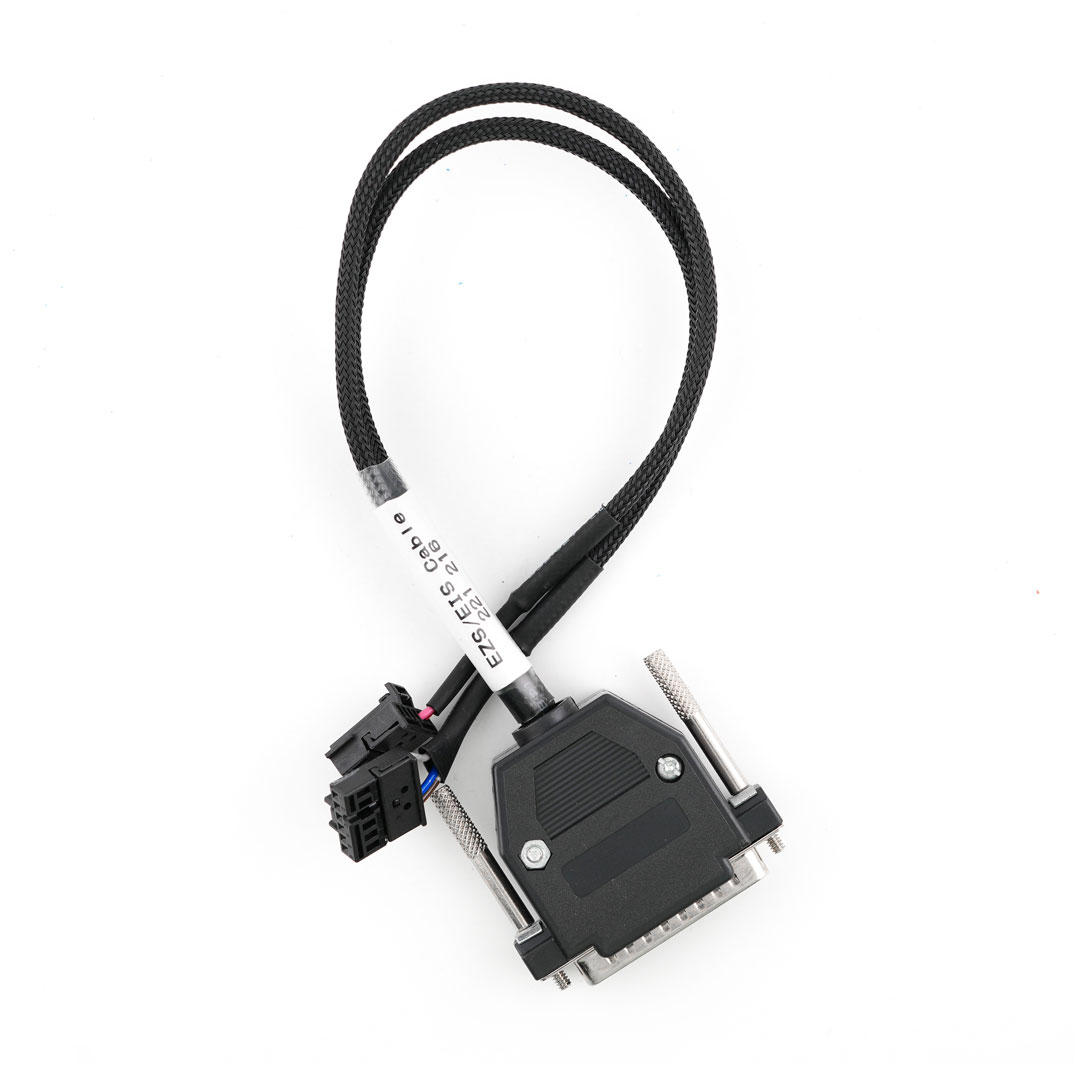

• 221 216 EZS/EIS Cable

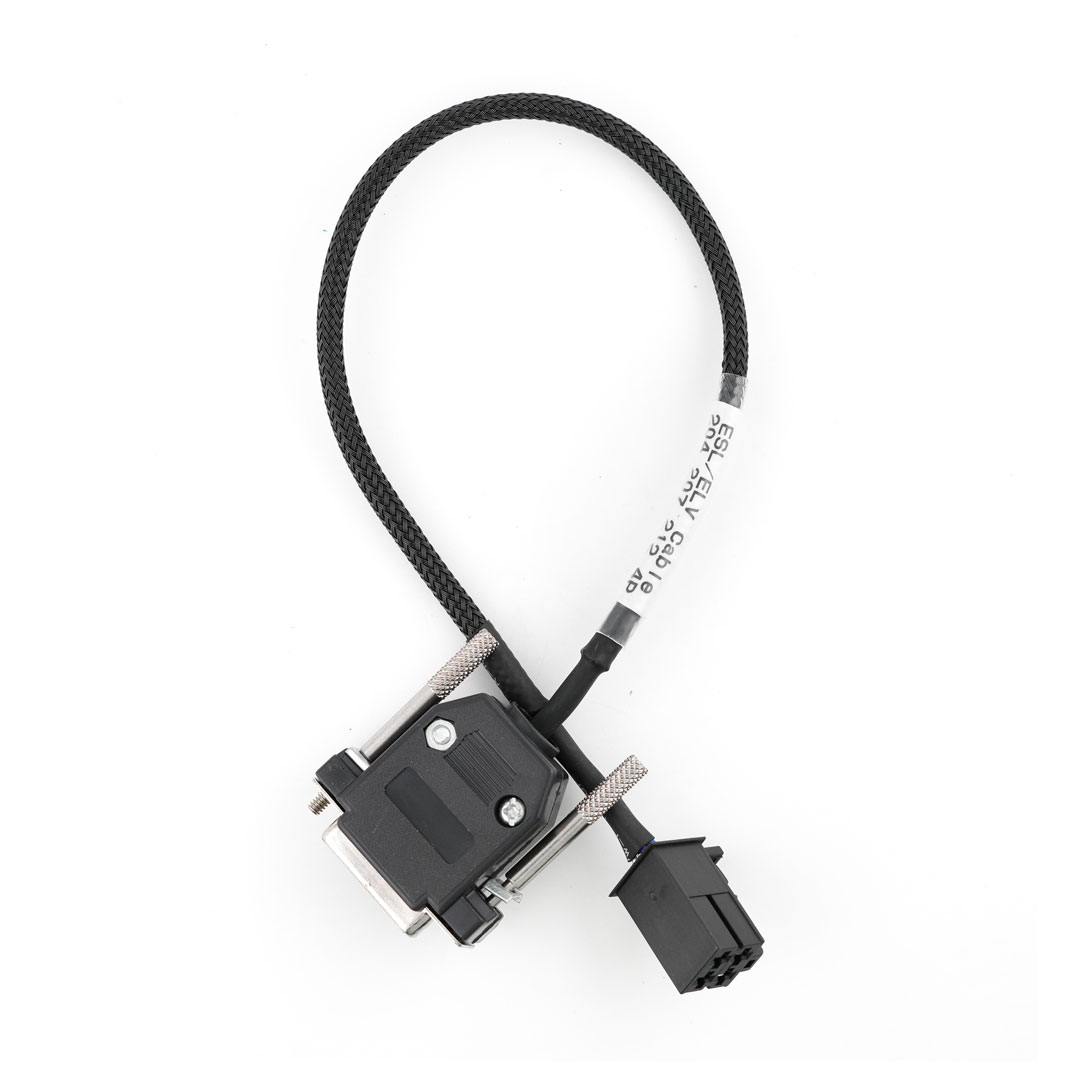

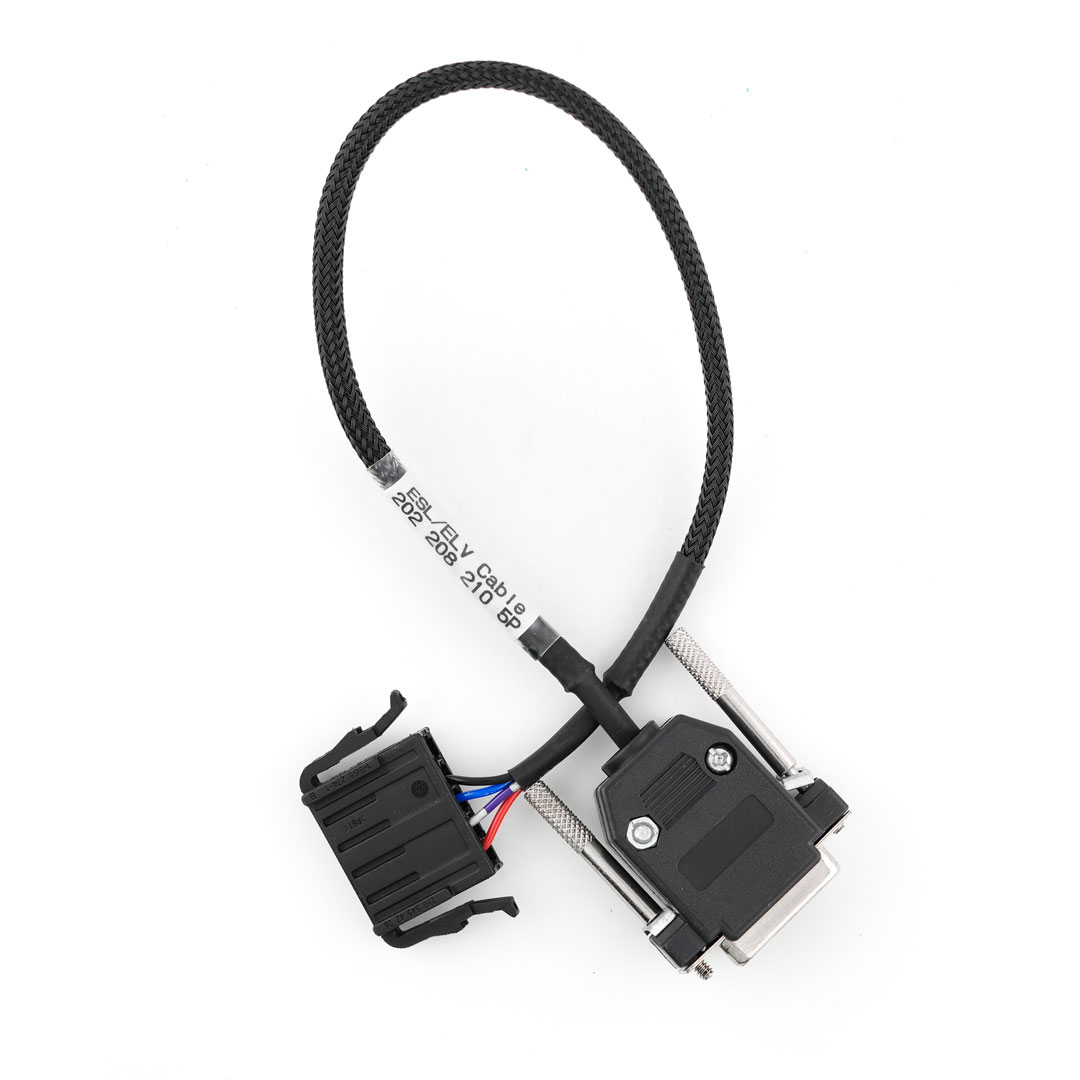

• 202 208 210 5P ESL/ELV Cable
• 203 3P ESL/ELV Cable

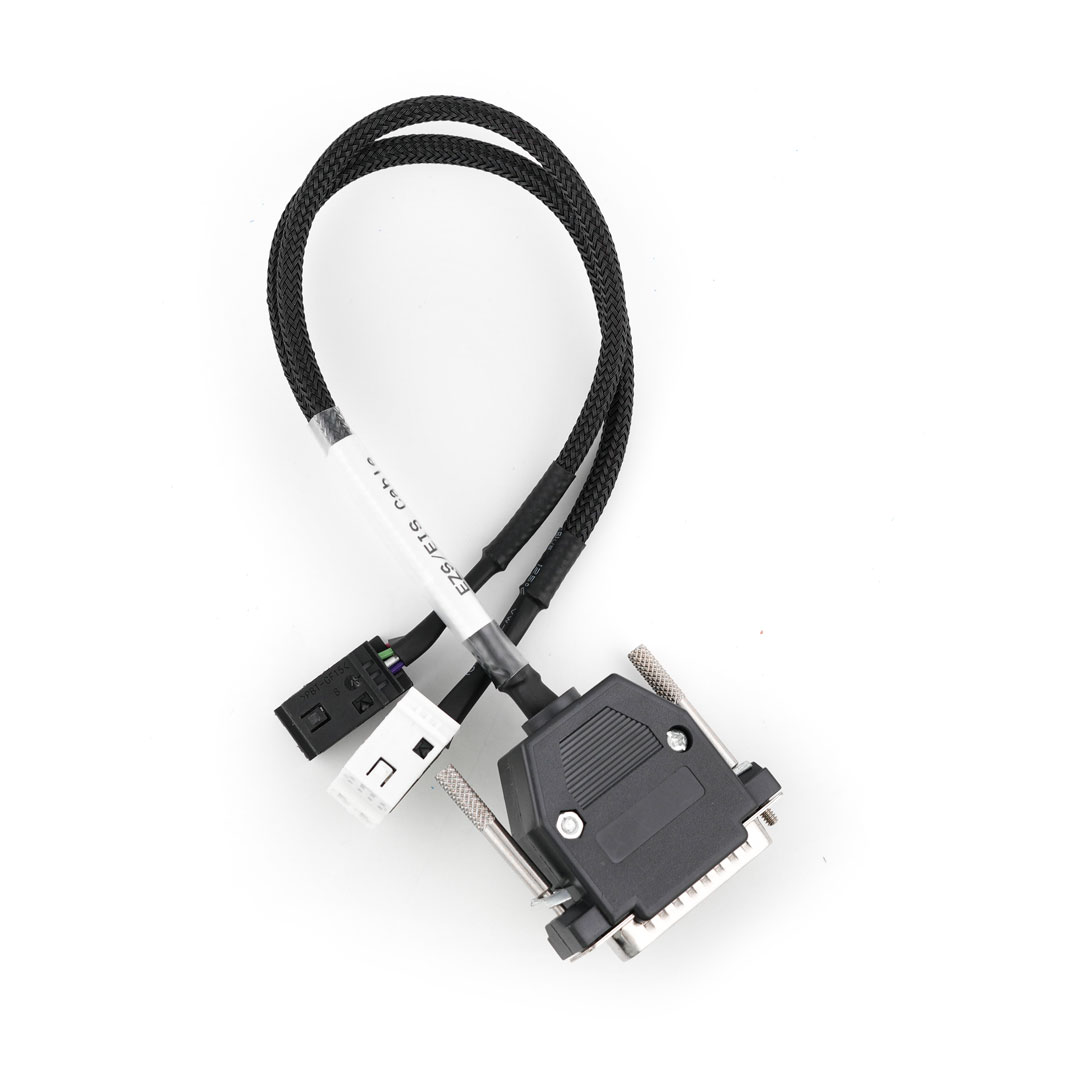

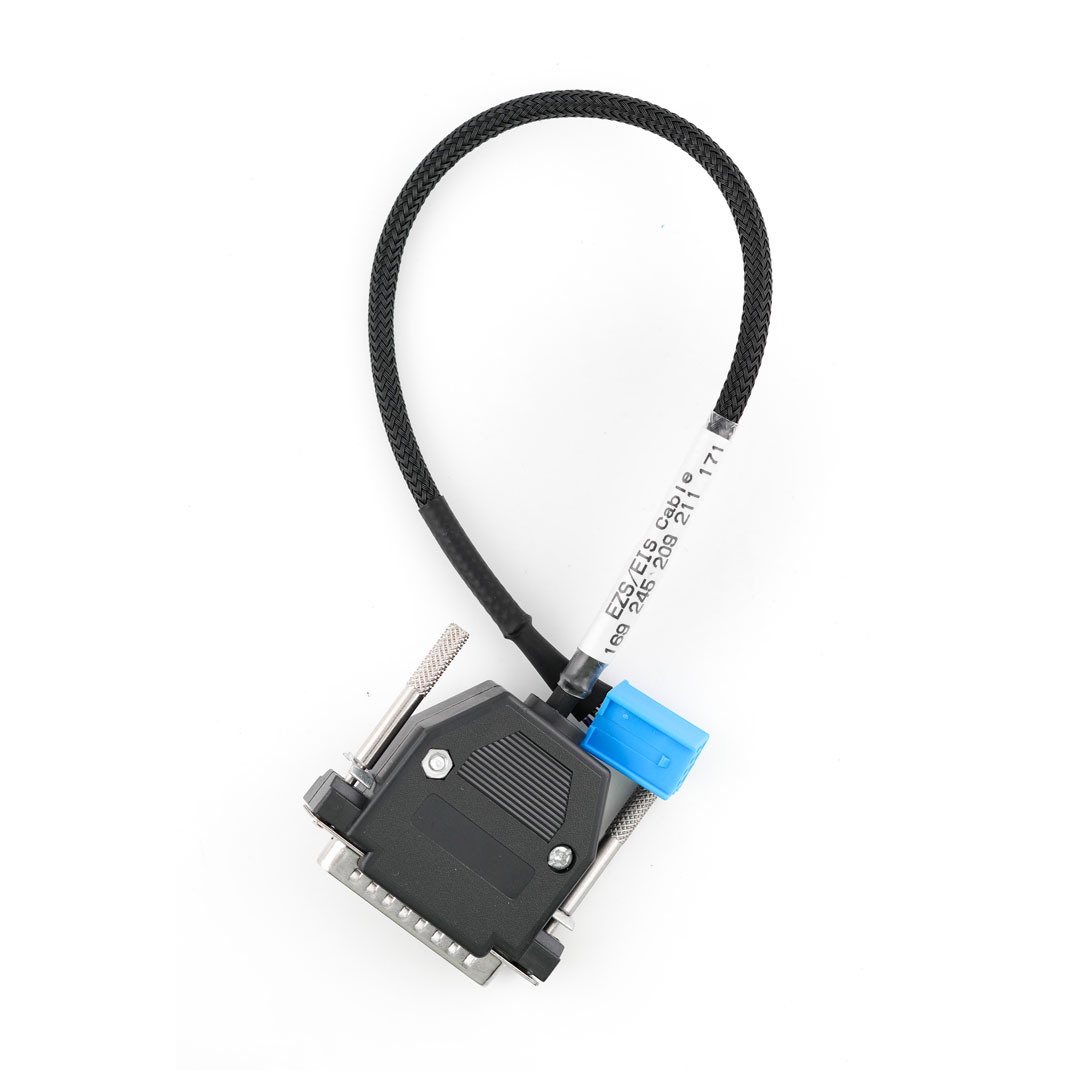

• 169 245 209 211 171 EZS/EIS Cable
• 169 245 4P ESL/ELV Cable
• ECUs Cable

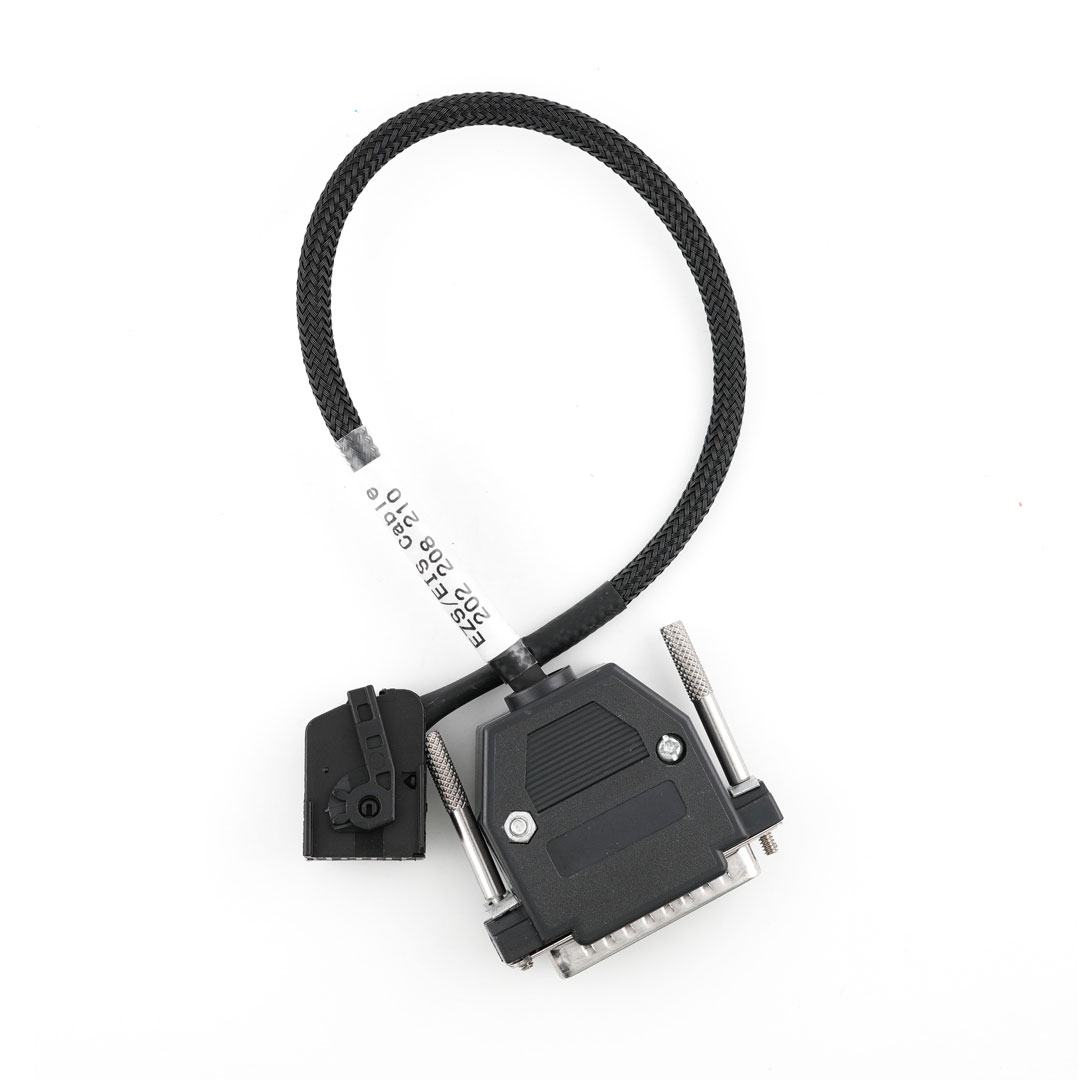

• 202 208 210 EZS/EIS Cable

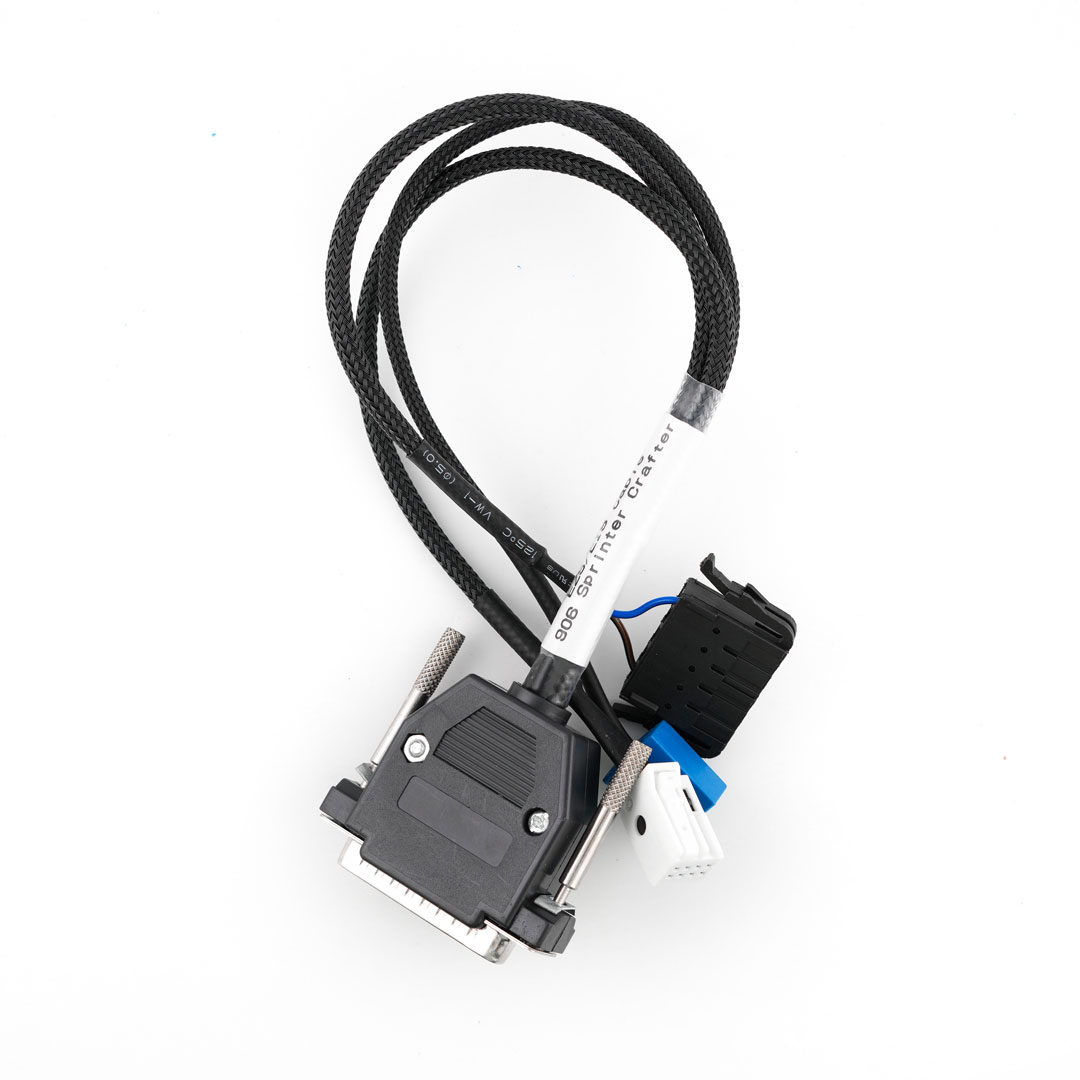

• 906 Sprinter Crafter EZS/EIS Cable

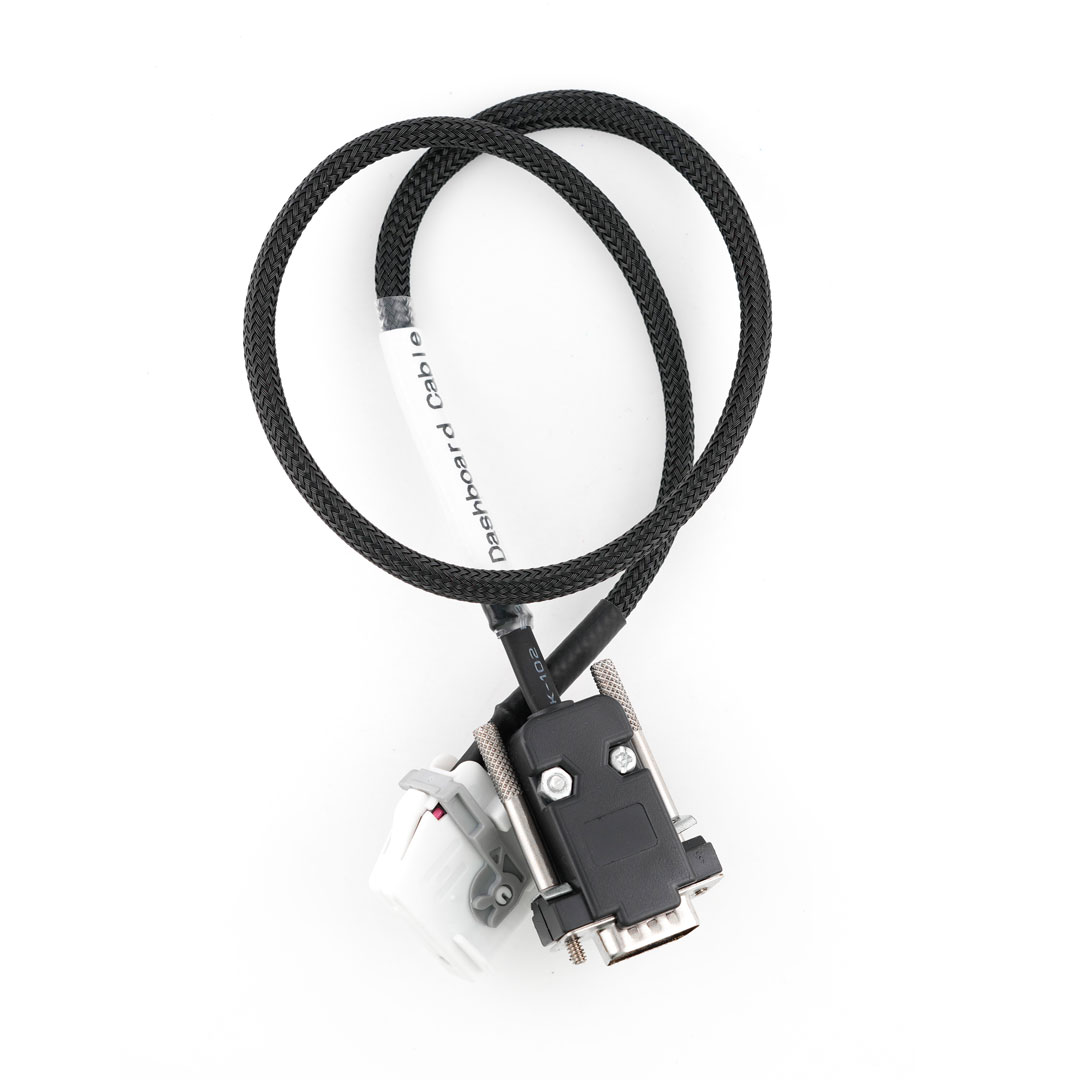

• Dashboard Cable
• ISM Cable

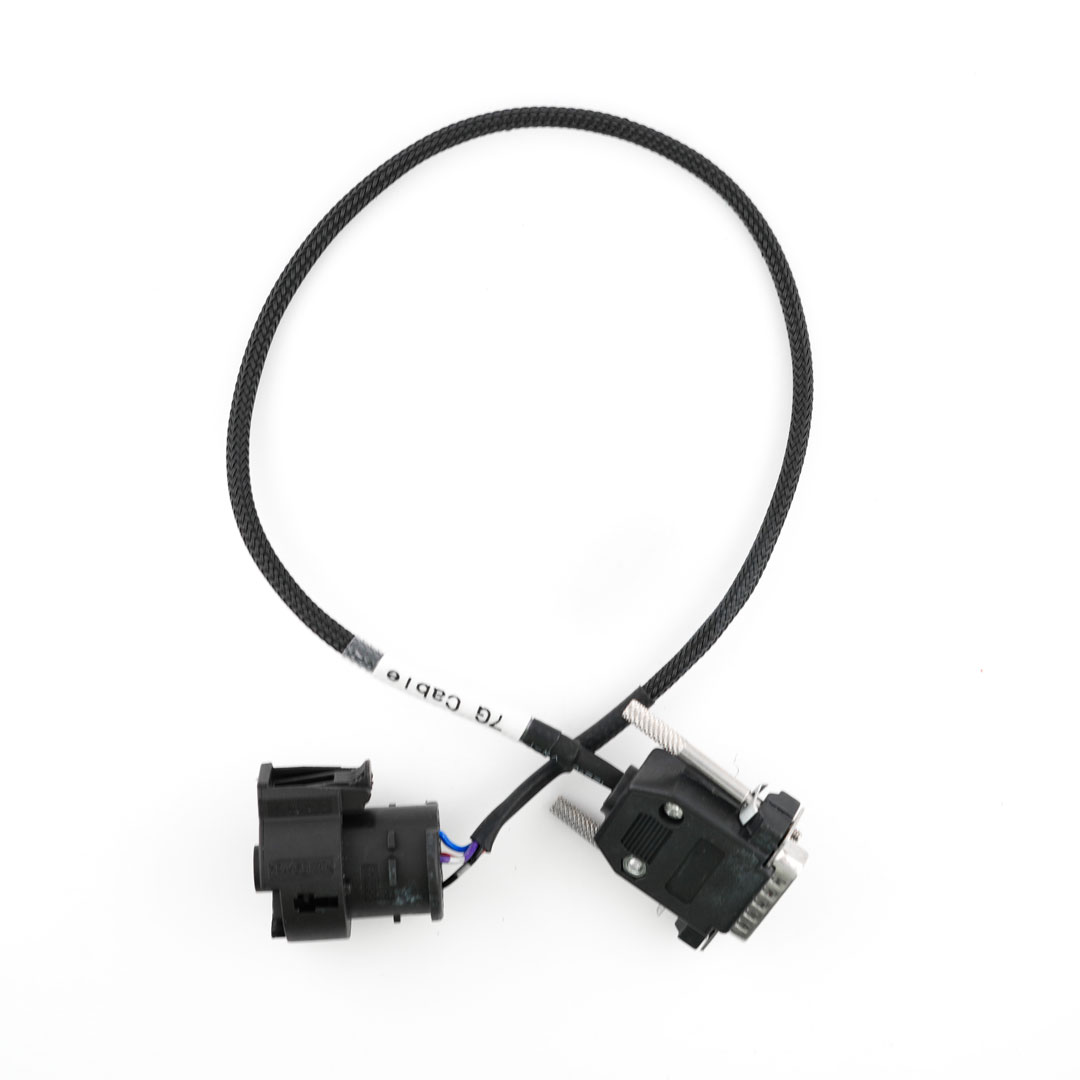

• 7G/VGS Cable

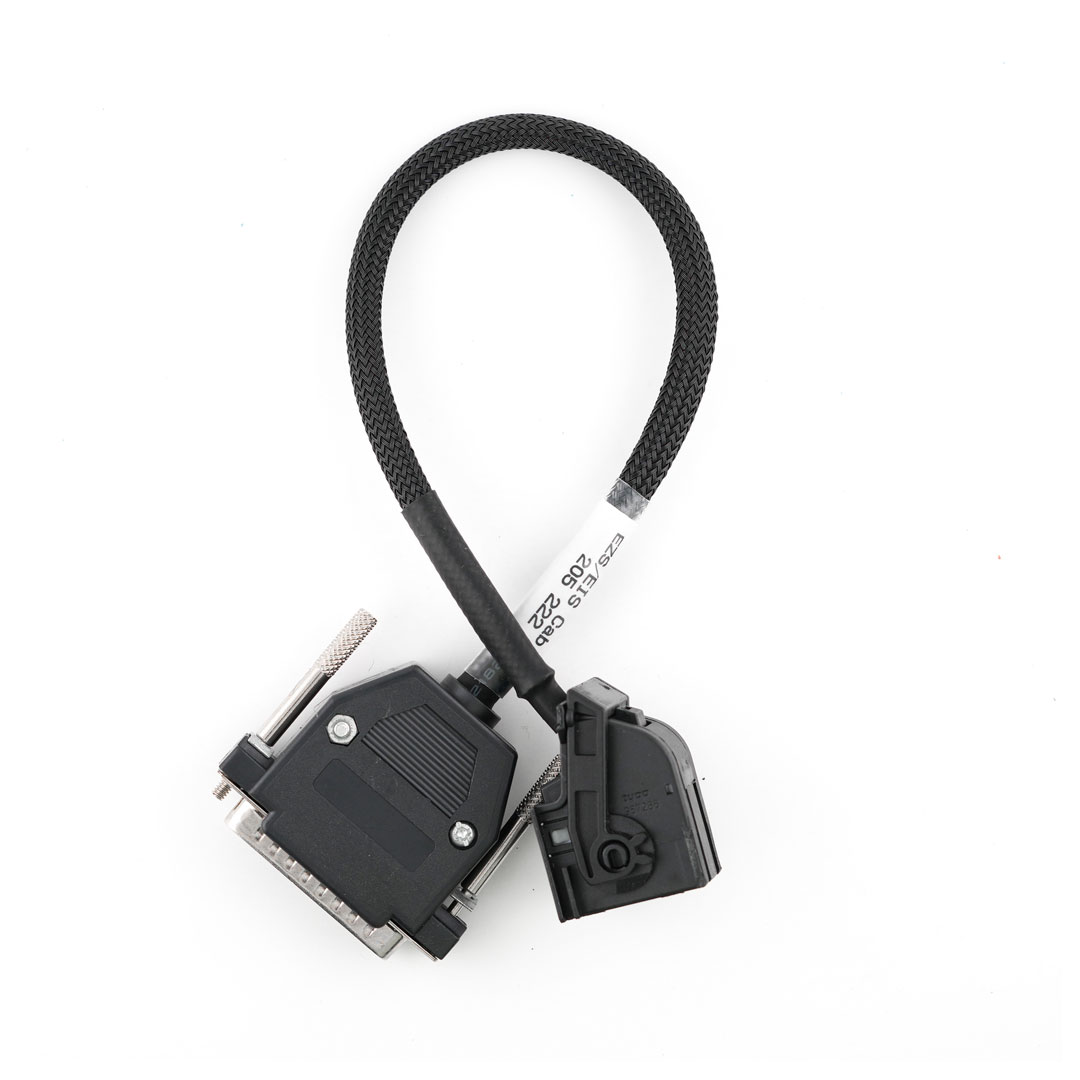

• 205 222 EZS/EIS Cable
• 203 463 639 Vito EZS/EIS Cable

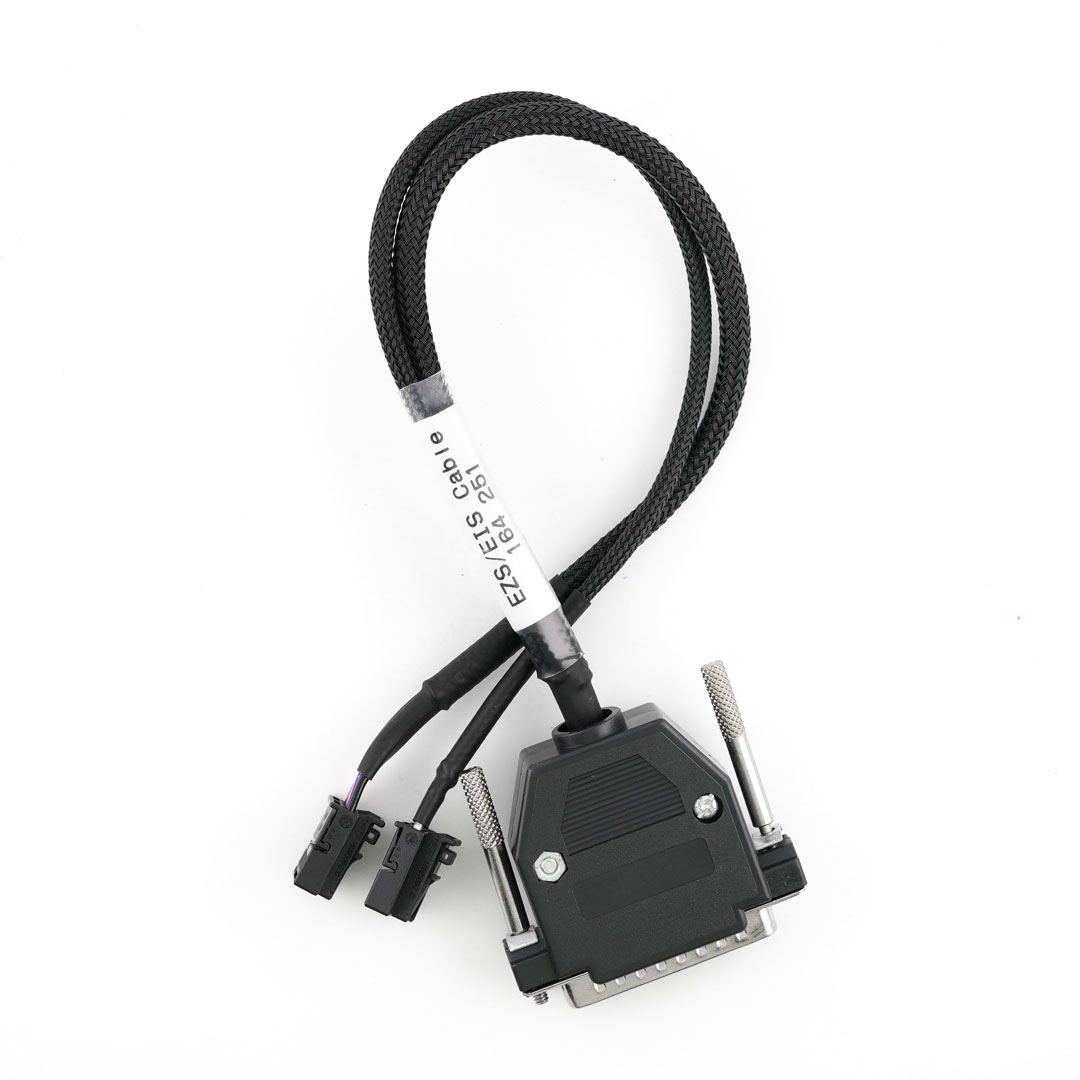

• 164 251 EZS/EIS Cable

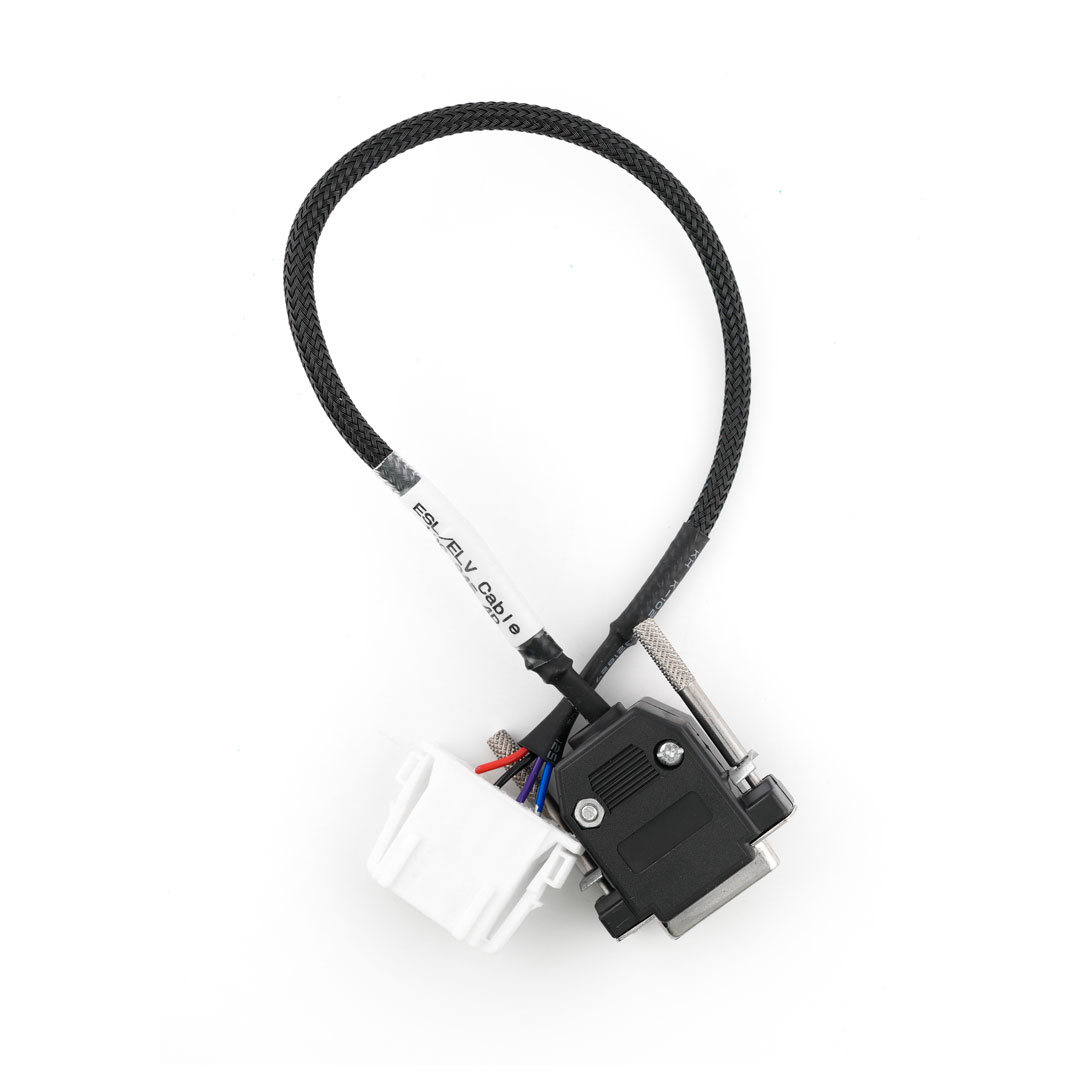

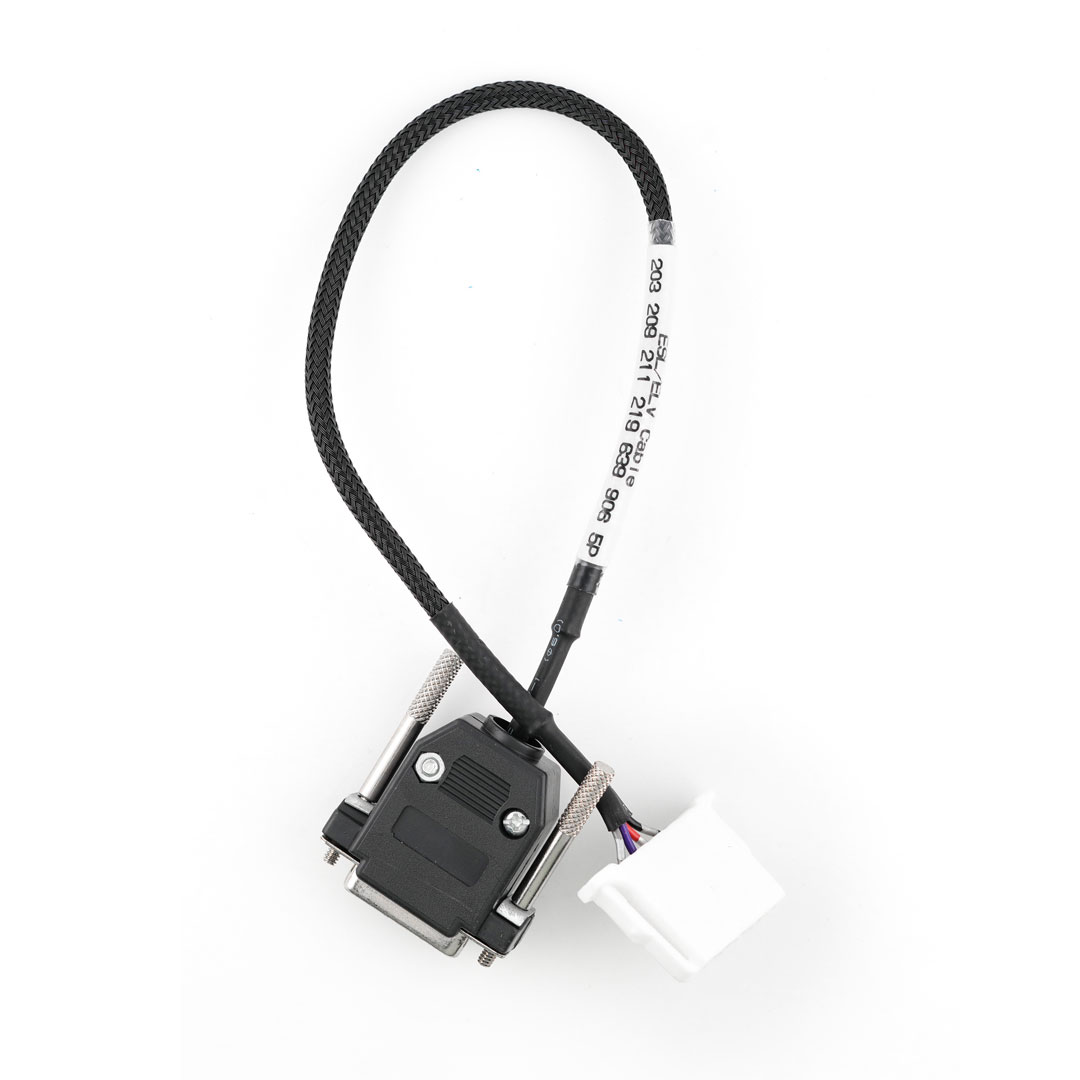

• 203 209 211 219 639 906 5P ESL/ELV Cable

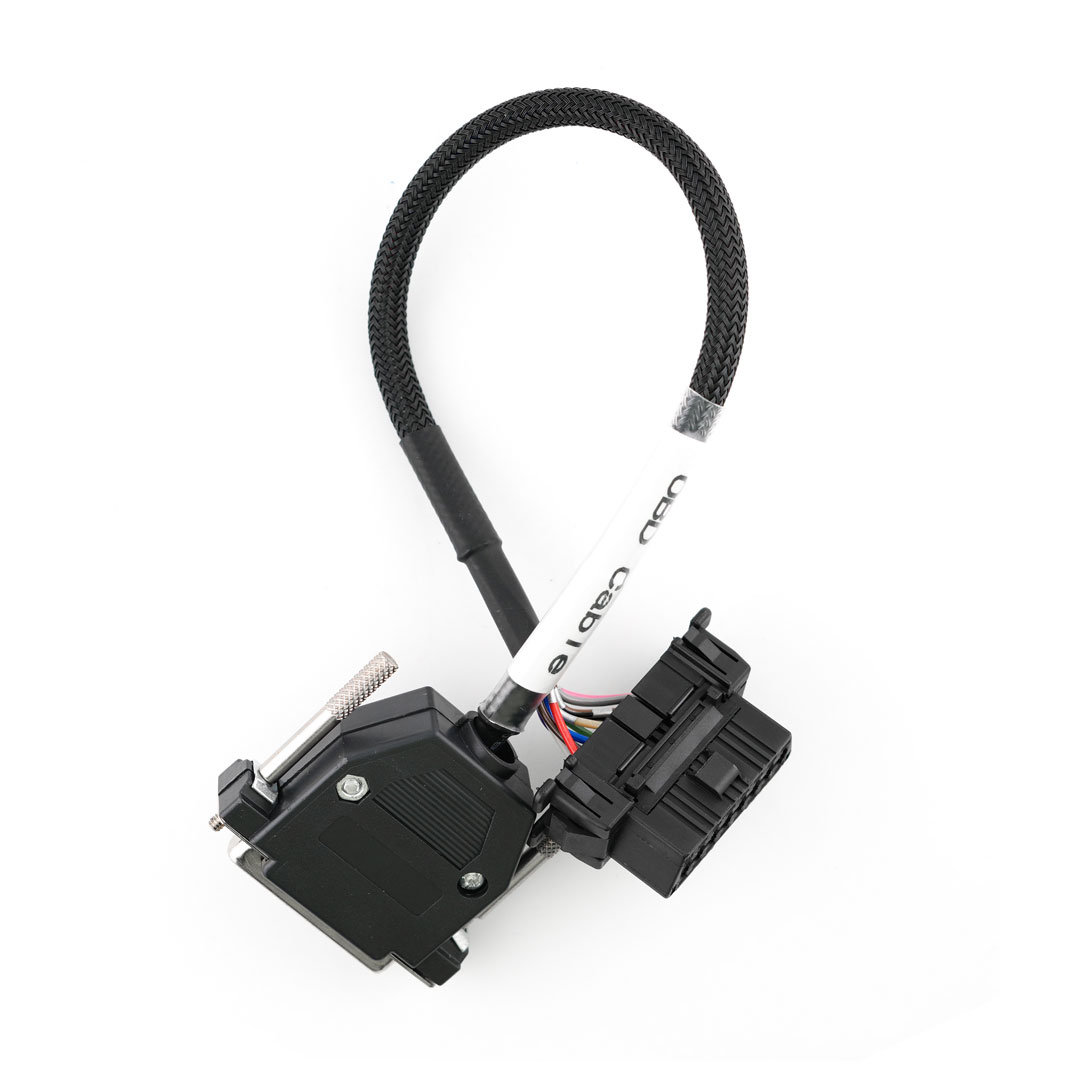

• OBD Cable
