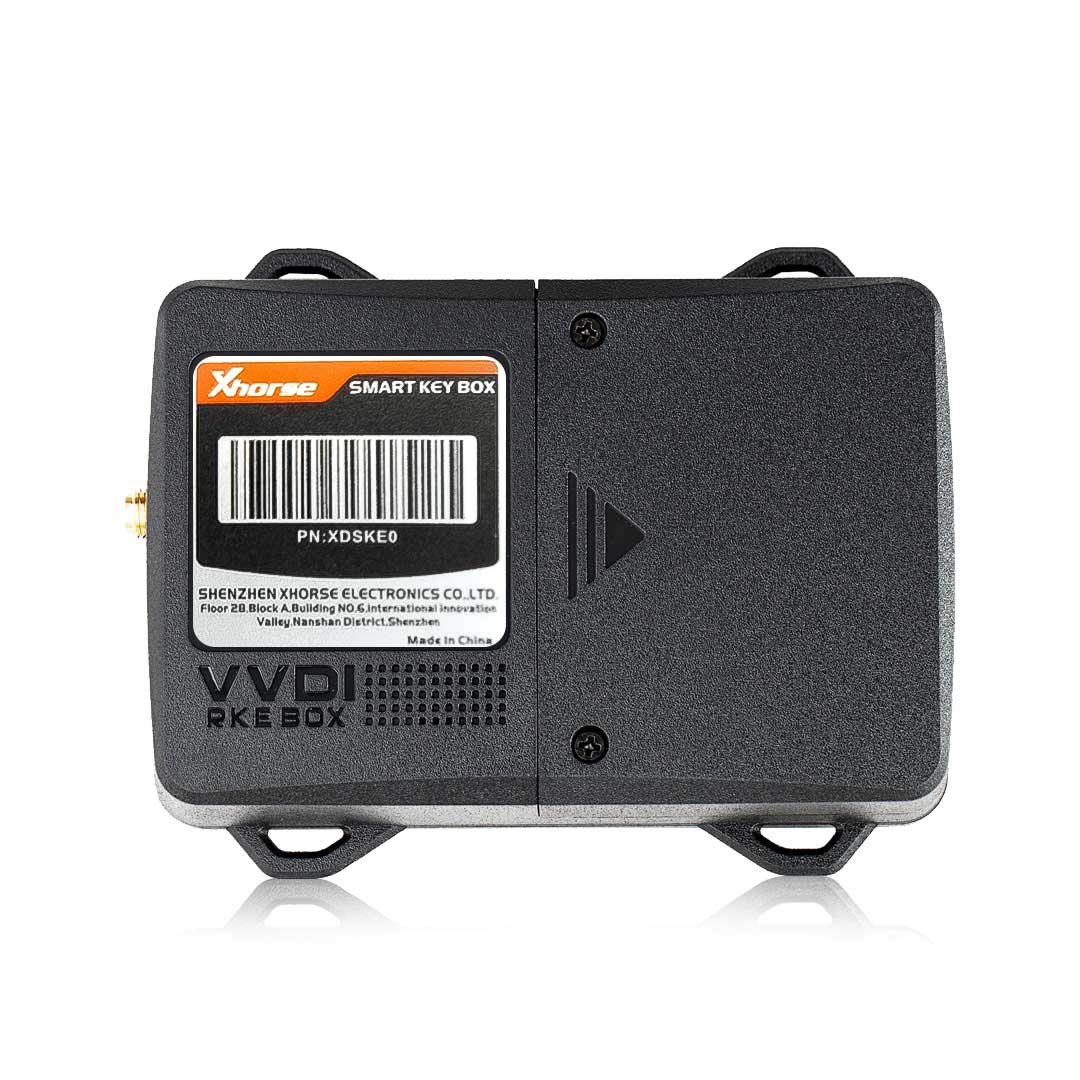

Xhorse XDSKE0EN Smart Key Box Work with Smart Phone

Xhorse XDSKE0EN Smart Key Box Work With Smart Phone

Smart Key Box May Be A Newly Designed Tool By Xhorse, Getting To Help Users Achieve A Non-remote Driving Experience.
By Installing The Tool Into Your Car, Your Smartphone Can Work as an Independent Car Key.
Usually, It Inherits All Of The Functions Of Your Original Remote, Including Lock, Unlock, Panic and Trunk.
Furthermore, Keyless Entry Is Additionally A Function That Will Be Performed On Your Smartphone.

Xhorse Smart Key Box Features:

1. Developed And Produced For The Aftermarket.
It Adopts Advanced Rf Technology And Is Suitable For The Car With a Push Start Function.
2. Support Add Smart Key For a Car
3. Support Add Or Modify The Keyless-enter Function
4. The Merchandise With Simple Installation And Reliable Performance.
5. Use VVDI Device To Get Remote.

Support Device:

Mini Key Tool, Key Tool Max, Key Tool Plus, VVDI2

How To Install Xhorse Smart Key Box?

1. Remove The First Remote, Solder The Cable Consistent With The Soldering Diagram Of The First Remote, Concentrate On The Direction.

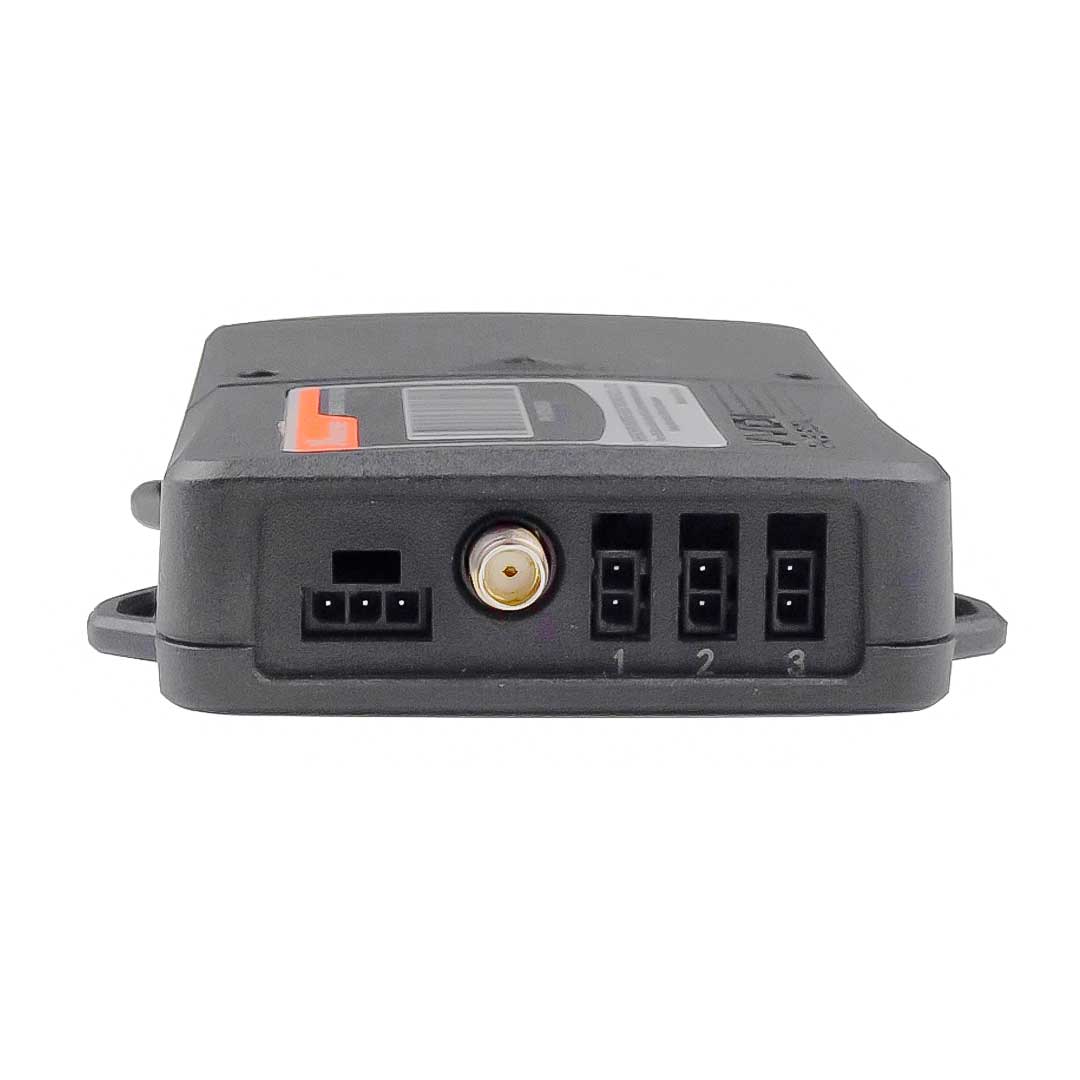

2. Connect The RF Antenna, LF Antenna ( Connect Any Two Interfaces Of Lfantenna ), And Therefore The Original Remote To Be Transferred.
3. Find The Vbat Wire And Ground Wire From The Fuse Box, OBD Interface, Or Other Locations.
4. Find The ACC Signal Line( The First Car Radio, The Road With Electricity After The Navigation Power The Instrument Light On).
5. Connect The Vbat Wire, Ground Wire, And ACC Wire Of The Facility Supply Cable To The Car.
6. Setting Dip Switch
7. Bindings Of Remote And Mobile (Refer To Binding Instruction
8. Install Complete
9. After Installed, Take A Key On The Brink Of The Car, Test The Automated Unlock And Lock Function If You Stand Back (Test Other Keys Within The Same Way
10. Test Unlock, Lock, Trunk, And Car Panic Function After Connecting With App

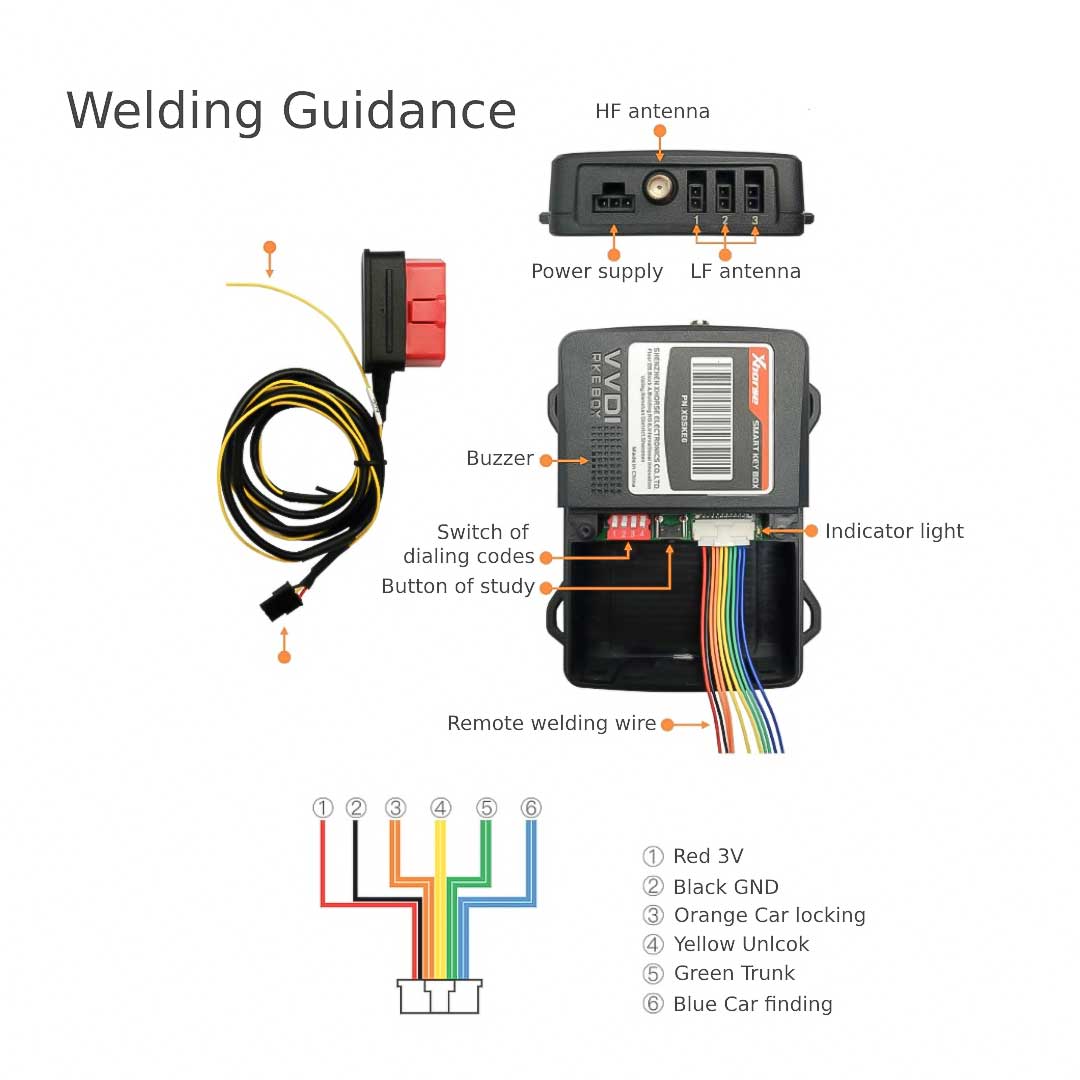

Installation Line Diagram

The Safety Index Is Above The First Remote.
You Can Perform "Security Settings" On The "Smart Key Box" App.
Even If The Phone Is Lost, Others Cannot Open Your Car.
You Can "Turn On Verification" Within The Security Settings.
Four Security Verification Methods, Easy To Work, Prevent Problems Before They Happen.

Smart Key Box Parameters:

Size: 100mm*78mm*20mm
Operating Voltage: 8v-12v
Quiescent Current: 9ma(12v)

Please Scan The QR Code To Download Smart Key Box App

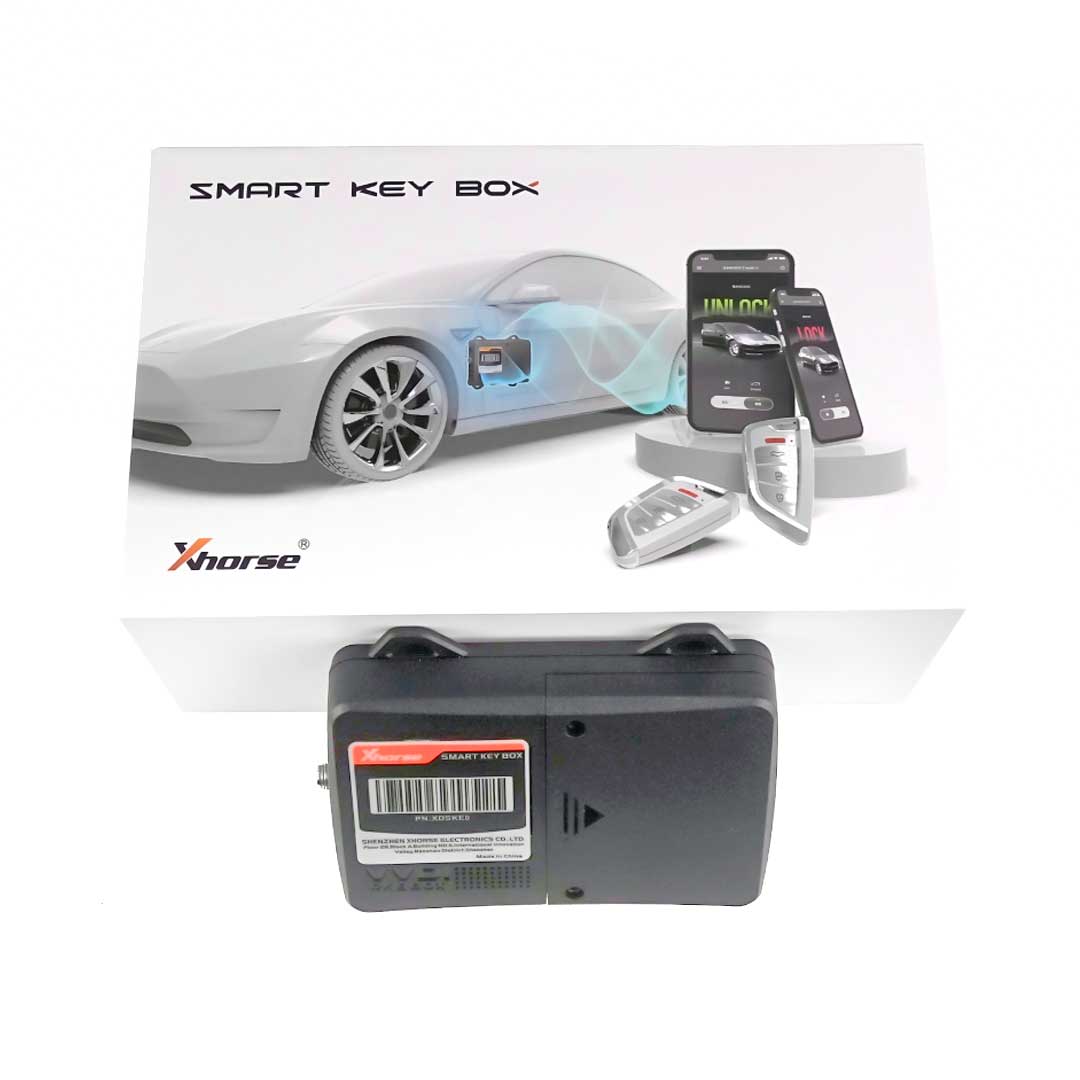

Package List:

1pc* Machine

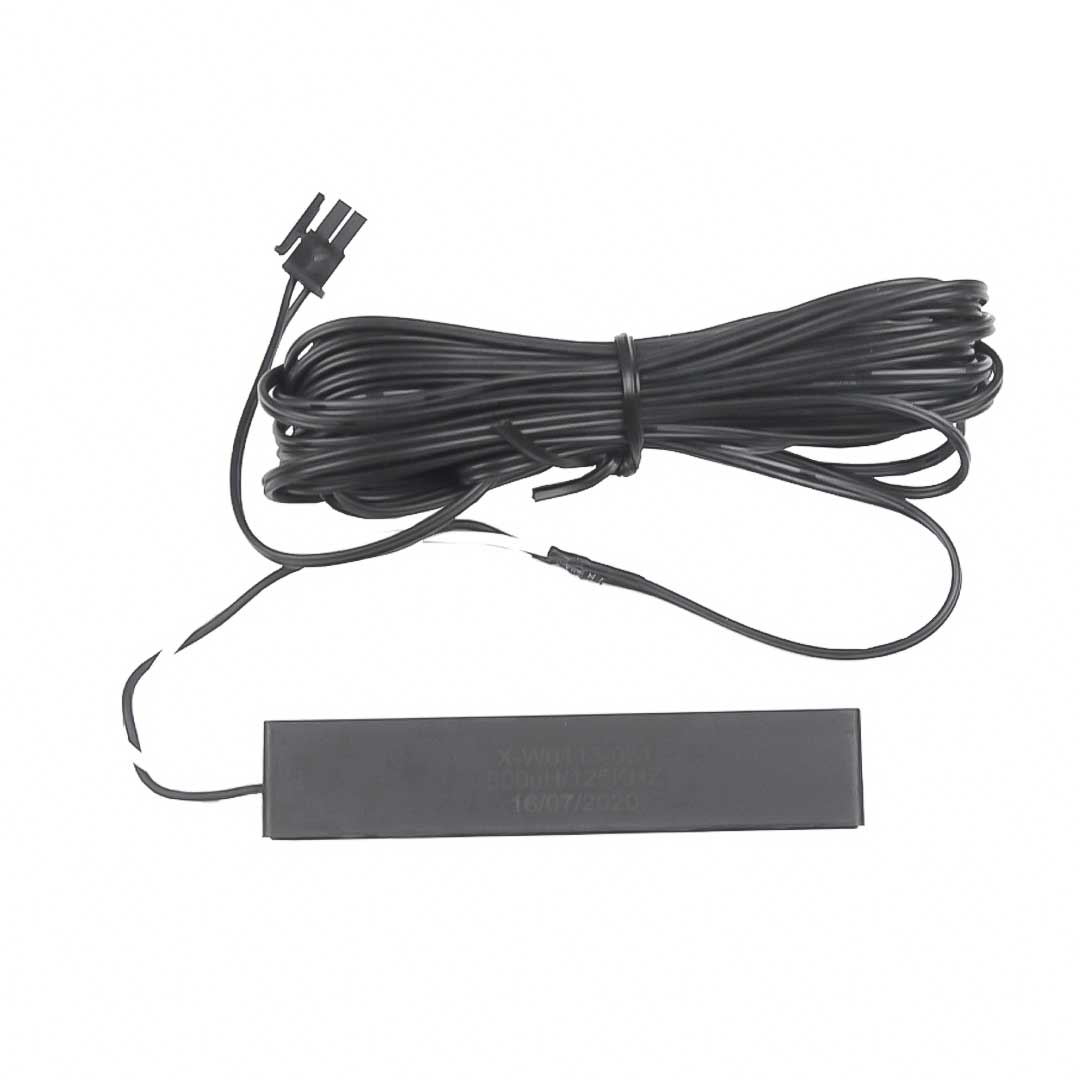

1pc* LF Antenna

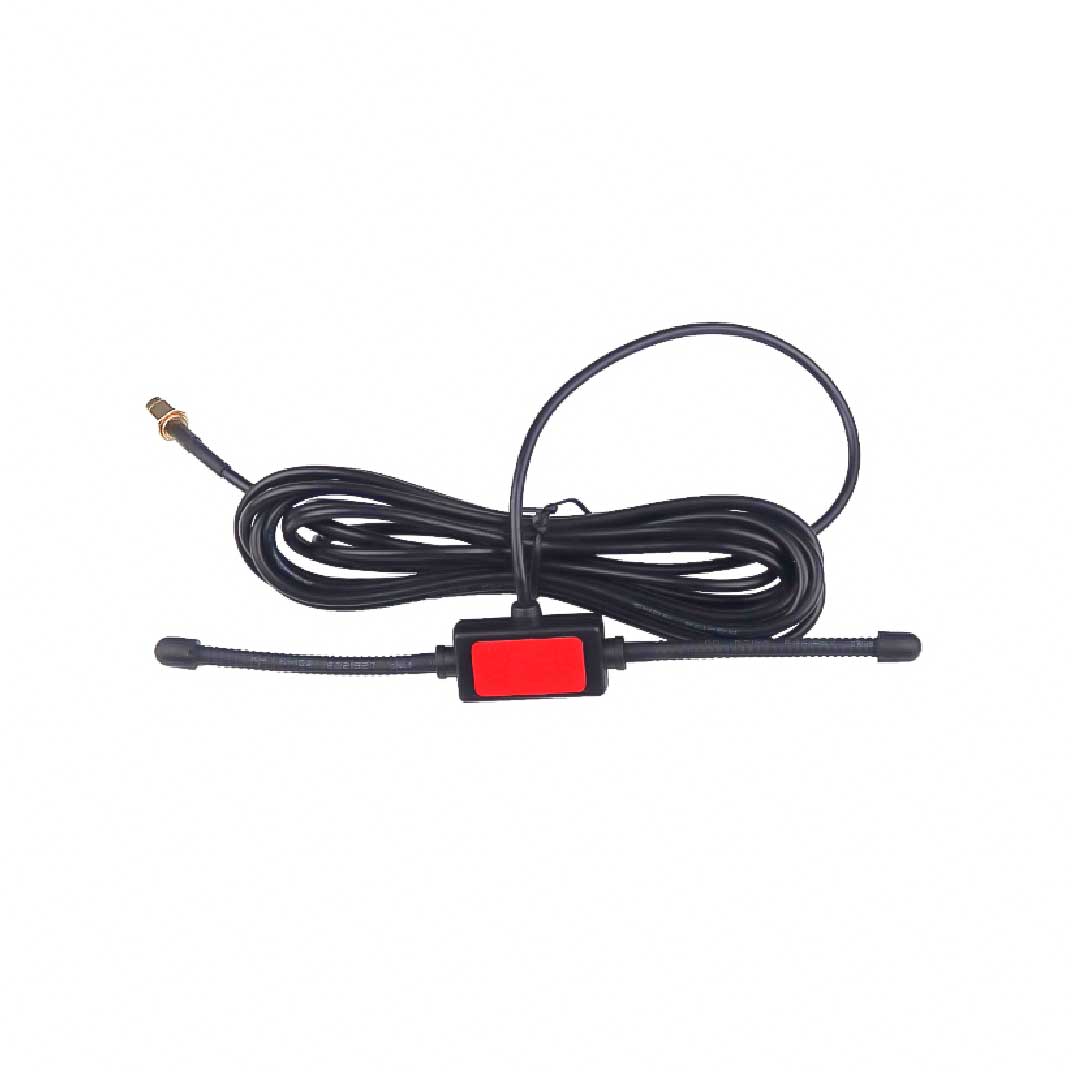

1pc* Rf Antenna

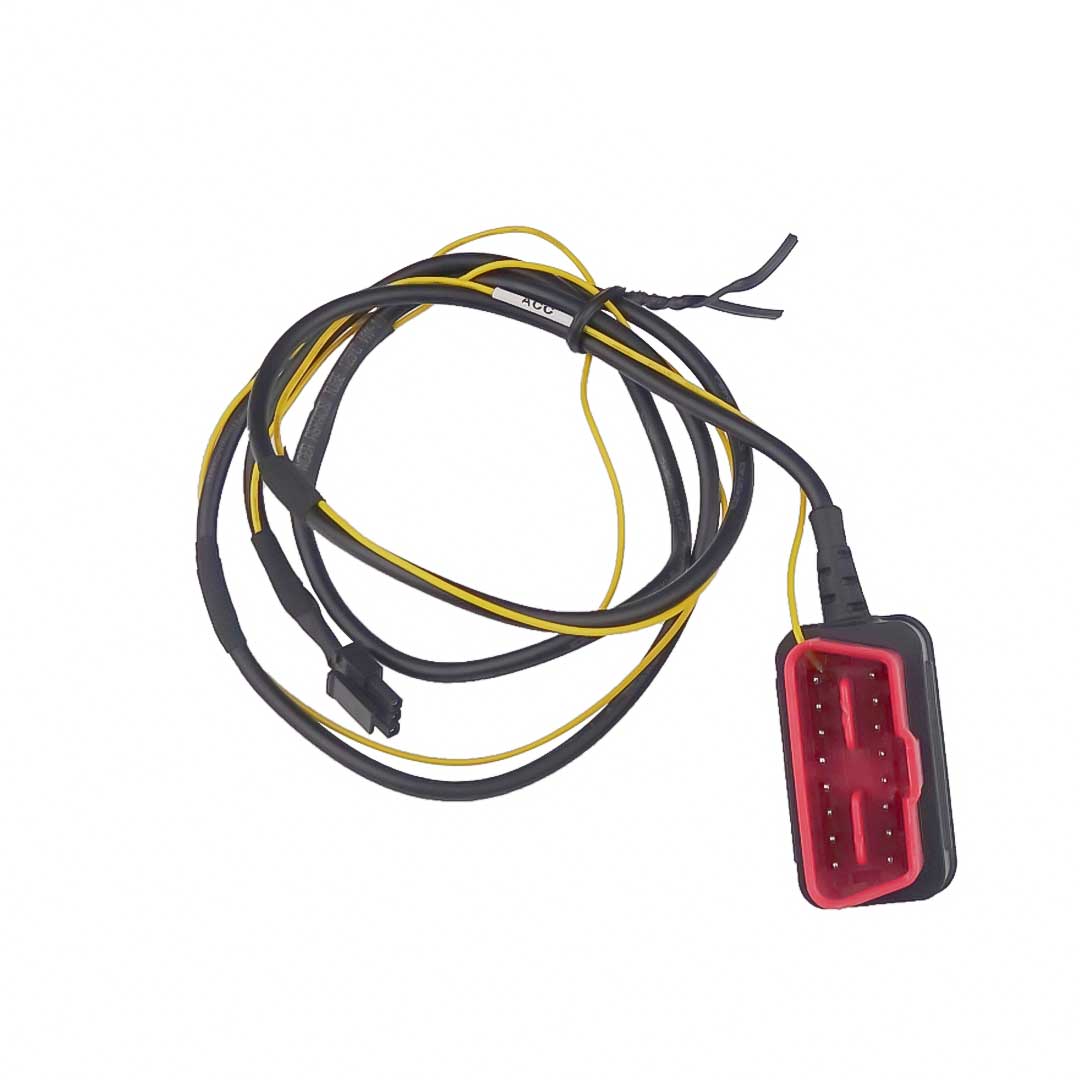

1pc* Power Supply Cable
User Manual
Product Quality Certificate
