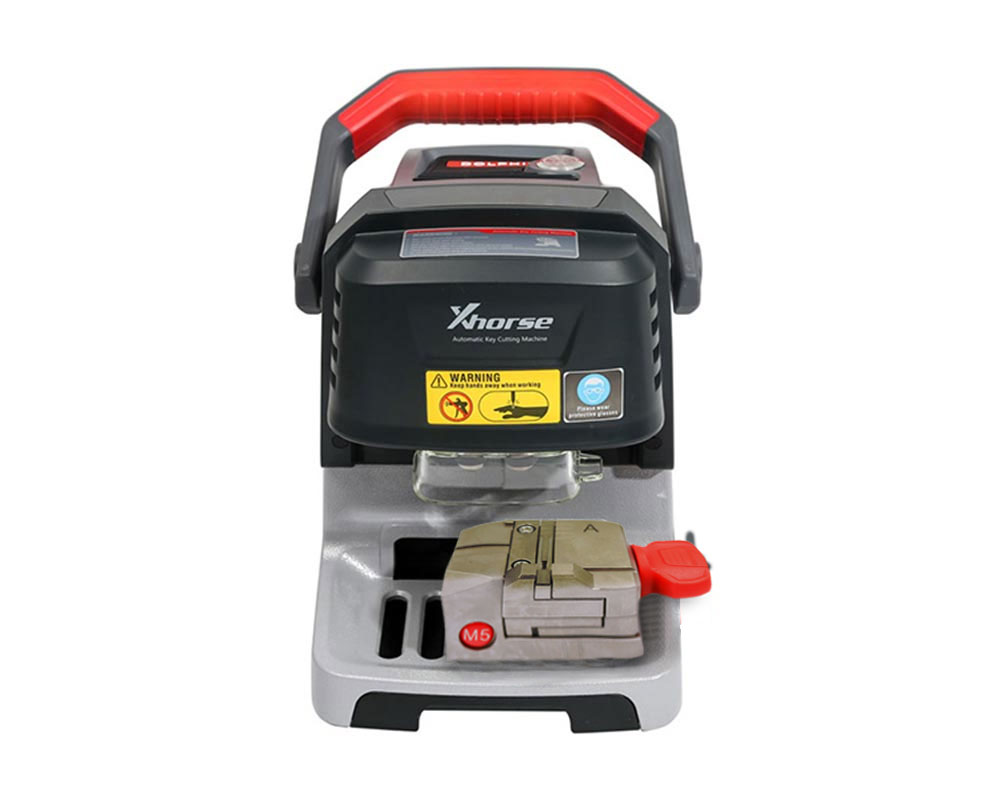

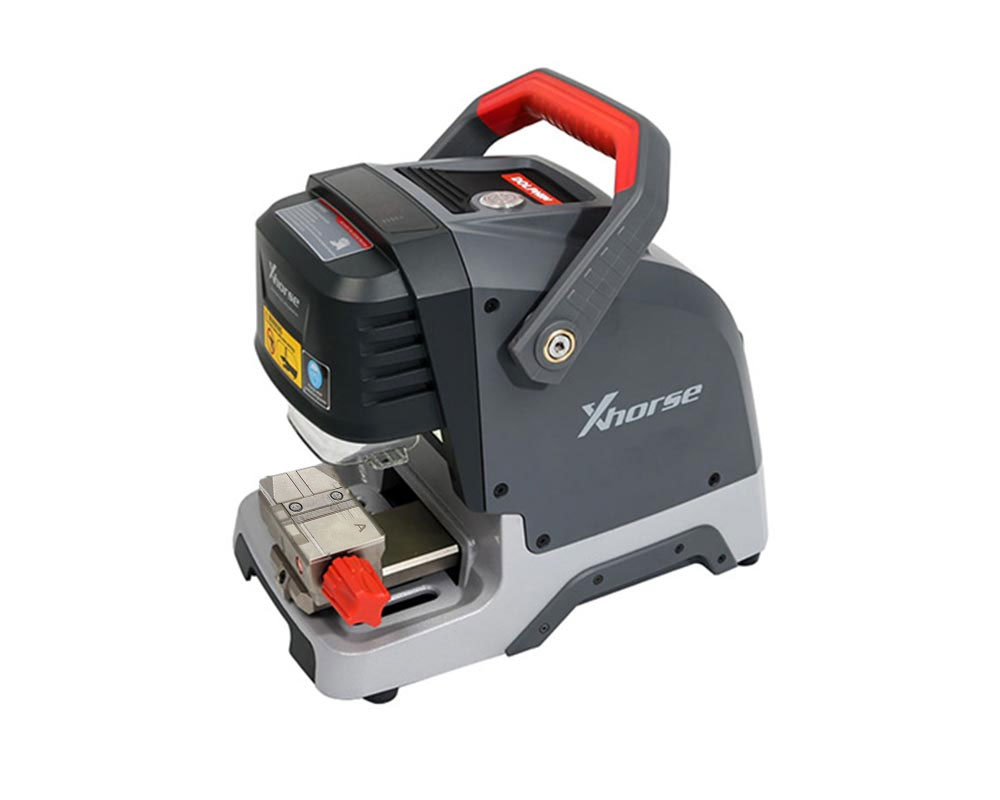

Xhorse Condor Dolphin XP-005 Automatic Key Cutting Machine

Dolphin XP-005 Highlights:

1. Newest Version: Firmware V1.5.2 Database: V85
2. Free Update Online via Upgrade Kit
3. Support Bluetooth, work on both iOS and Android mobile phone
4. Same Build-in Database as Condor Mini Plus, Supports All Keys Lost
5. 1 Year Warranty for Machine and 6 Months Warranty for Battery.
6. Support Sided, Track, Dimple, Tibbe, Some Household Keys, support Plastic and Aluminum Keys
7. Xhorse APP Language: English, Spanish, French (Free to Switch Yourself)

   Thai, Polish, Italian, Portuguese, Hindi, Hebrew, Korean, Indonesian, Chinese (Need to Get from Local Dealer)

8. Bind with VVDI MB Tool or Key Tool Plus to Get 1 Free Token Every day.
9. Read Bitting from Key Blade Photo, Support Get Bittings from Photo.
10. Supporting Self-Calibration, Supporting Key Duplication and Cutting for Vehicle Keys, Supporting Universal Key Decode for Multiple Key Types

Note: The Dolphin XP-005 machine can cut laser and cylinder keys out the box; and with the addition of the optional M3 Jaw Clamp you can cut FO21 (Tibbe) and SX9 keys and with the M4 clamp is applicable to single-sided house-key.

Xhorse_Condor_Dolphin_XP-005_User_Manual

Xhorse Dolphin XP-005 Key Cutting Machine Features:

APP smart cellphone operation

Built-in Bluetooth function, use smart cellphone to download APP, easy for smart operations

• Android: Android 4.0 and above version
• Apple devices: IOS 8.0 and above version

Portable and convenient

Compact structure design, perfect space utilization; built-in lithium battery one-time full charge, machine will cut 30-50 keys stable solid handle for safe and portable movement, perfect experience

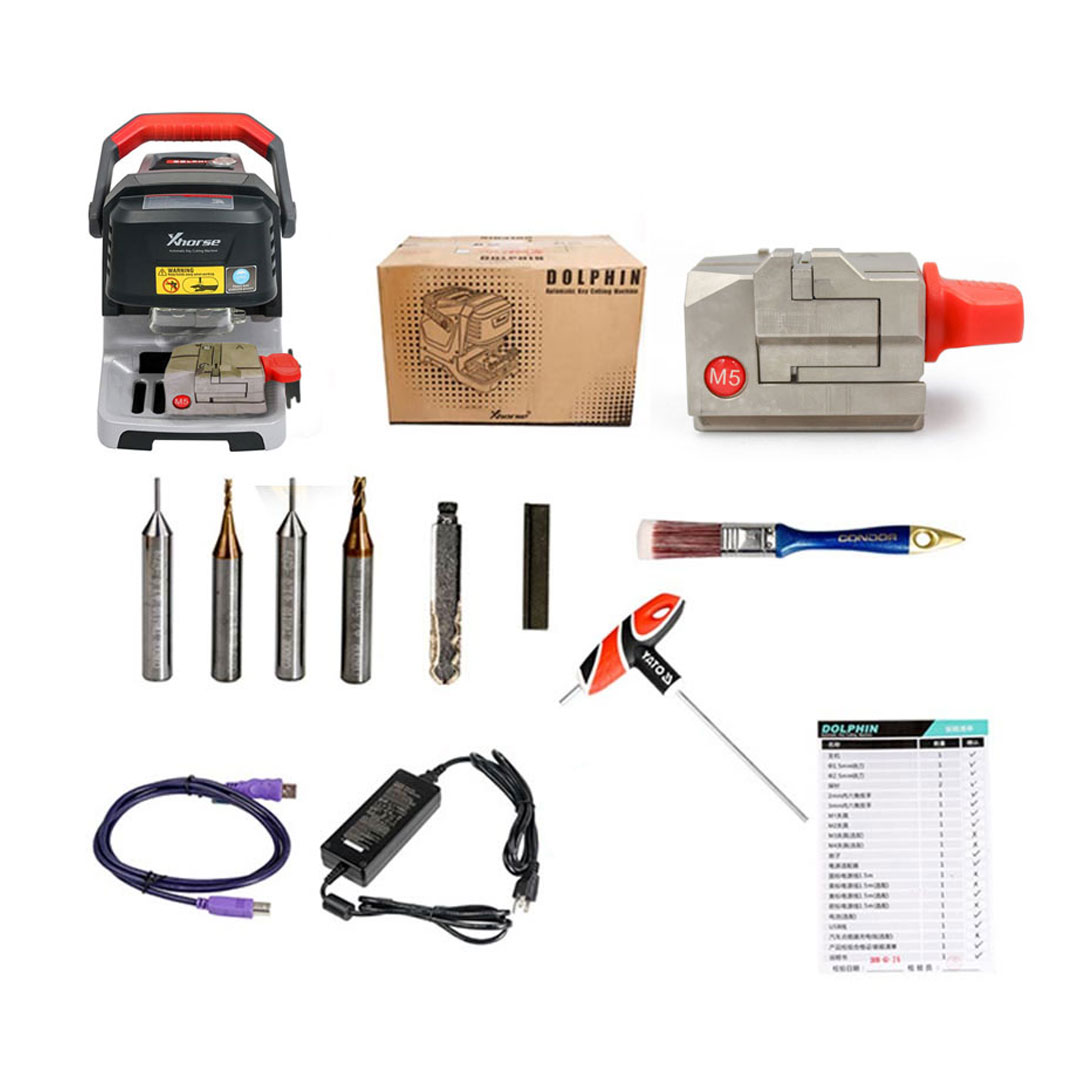

Standard equipped 2 clamps with powerful function

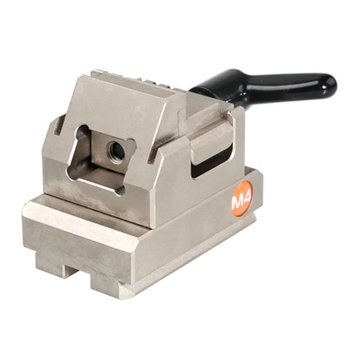

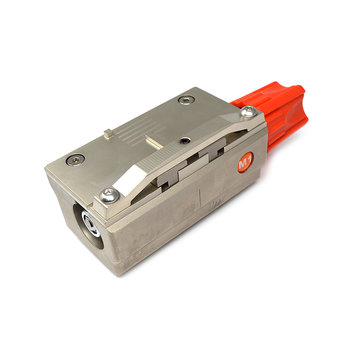

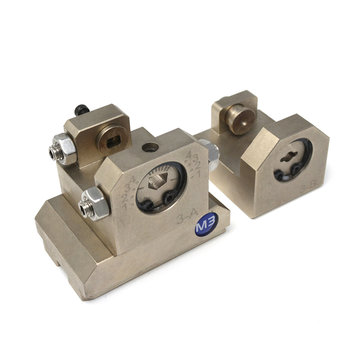

Standard equipped two clamps M1 and M2, supports Sided, Track, Dimple and Tibbe keys. Optional M3 clamp and M4 clamp are available, M3 clamp is applicable to Ford FO21 & Citroen SX9 keys, M4 clamp is applicable to single sided house-key.

Manufacture Process

All aluminum body structure, Manufactured by Germany-made DMG CNC machine;

American imported 3-Axis Precision Ball Screw with clearance function, ensures high precision cutting.

Data Richness

Provide rich vehicle data, blank key data, the best tool of all key lost.

Intelligent Control

Provide powerful free App, support multi-language, support mobile phone, tablet computer and other intelligent terminal control, easy for operations.

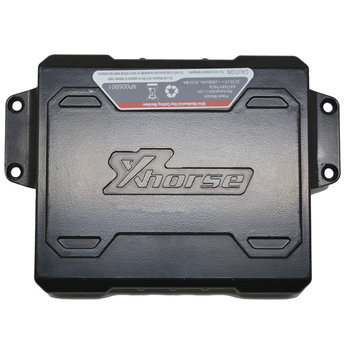

Built-in Lithium Battery

Optimized lithium battery of well-known brand, stable and reliable, support cutting under no power conditions.

Online update

Free online update software, the latest update information will be released timely, 24 hours support server online update, no need to back for update.

Technical service

One-year warranty, free technical support, online service to provide remote control support

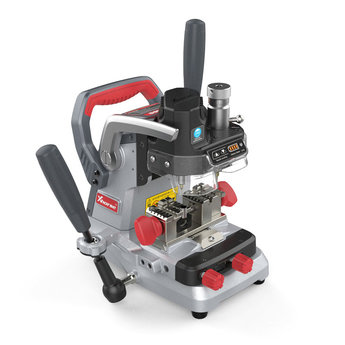

Xhorse Condor Dolphin XP005 vs XP007

Dolphin XP005 is automatic machine working with phone app it's good machine, fast and easy on the job.

Xhorse Dolphin XP007 is manual has limitations.

relies on your skill of locksmithing or requires keymoulds for all key lost situation. But it's also good for cloning keys.

overall XP-005 and XP-007 are both good tools that a locksmith should have.

if you are a learning locksmith start with xp005 its good for learning.

How to Update Dolphin XP 005 Key Cutting Machine?

1, Turn on the Xhorse Mini Dolphin machine and connect it with the computer via USB cable, it will show the BIOS on the screen of Dolphin as below,

2, Run the upgrade kit and choose "Find Device", it will be show a small window , choose "Yes" and will guide to install the driver

3, Choose the correct driver according to the machine as below, make sure you are shut down all protection before you install the driver, especially for windows 10 system

4, Install Windows driver for Dolphin

5.After the driver has been installed, run the "Upgrade kit" and choose "Find Device" again, to see if you can see the device serial number and firmware version, do not chose "Update" until it you can see that, because if you can't find device, which means the driver is not been installed, and the machine will be blocked if you update it without driver

How to Update Xhorse Dolphin XP-005 Database?

• Enter Dolphin XP-500 main interface and click "Update"
• Click "Database Update"
• If you find a new version, click "update" and download the new version. Click on "OK" after download database success.

• If cellphone connected by mobile internet data, a prompt saying that download maybe costs data fee, recommend downloading by WIFI

Condor Dolphin XP-005 Update Log:

V1.5.1 (2021-04-07)

Add parts of Chinese car models

Fix parts of key data align issue

Fix Honda cycle key data issue

Database V72 (2021-1-14) GL

+Add parts of Chinese car models

+Add Buick Excelle key date

*Fix HU134 key date issue

*Optimize key cutting off mahidra bolero (IN version)

+Add TATA Aria, Bolt, Zest key date (IN version)

Xhorse Dolphin Key Cutting Machine Parameters:

Working temperature: -10~50℃

Input voltage:12-24V

Battery capacity: 64.75wh

Cutting power: 100W

Standby power: 15W

Motor Rotation Speed: 10000-13000RPM

Rated torque: 0.15 Nm

USB Port: USB2.0

Machine Dimension: 315*218*270mm

Package Dimension: 510*315*345mm

Net Weight: 15kg

Gross Weight: 18kg

Dolphin Clamp Installation Steps:

• Unscrew the clamp locking screw.
• Choose the proper clamp for your keys, slide it into the clamp holder, and push it to the limit from the right side.

• Fix the clamp locking screw until the clamp is locked.
