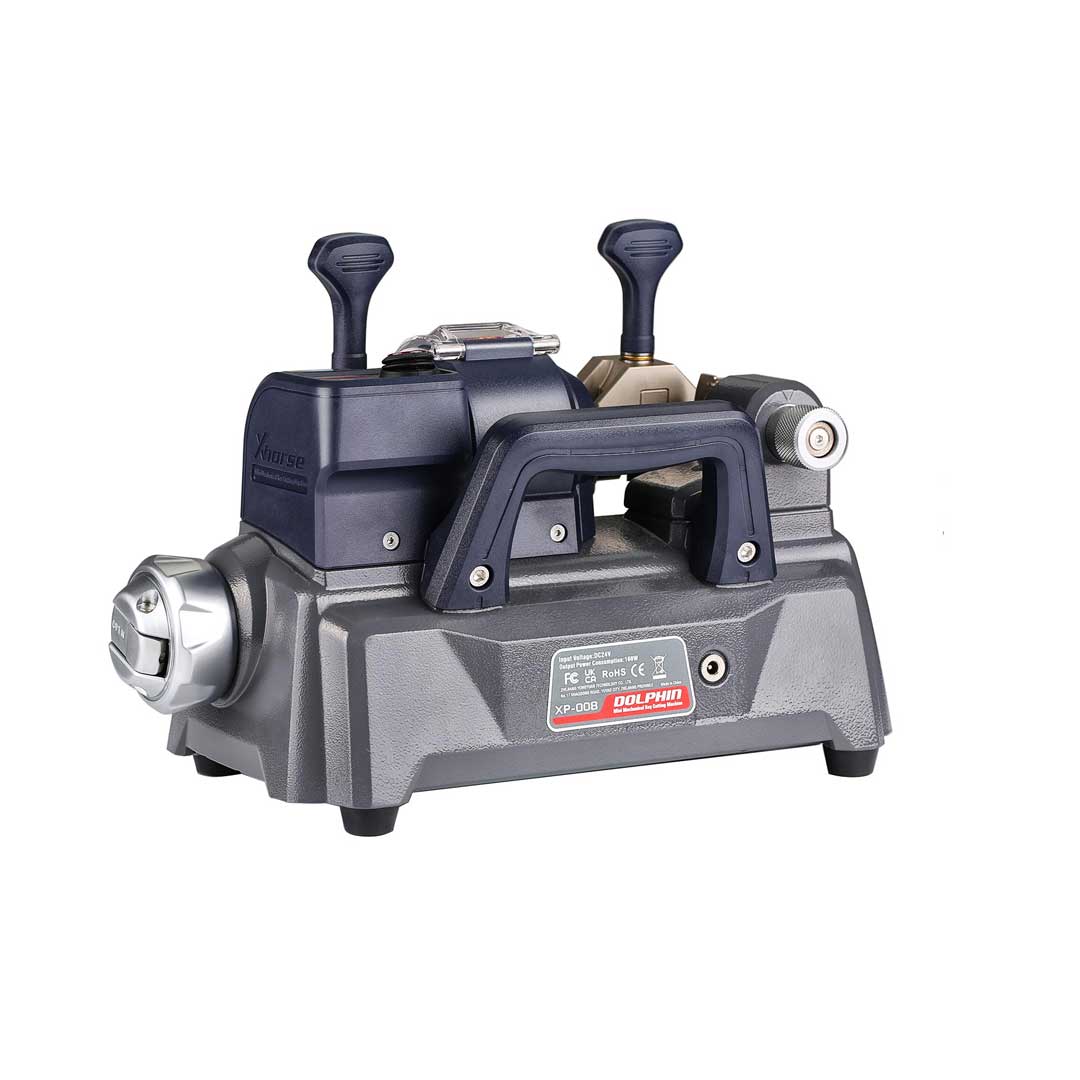

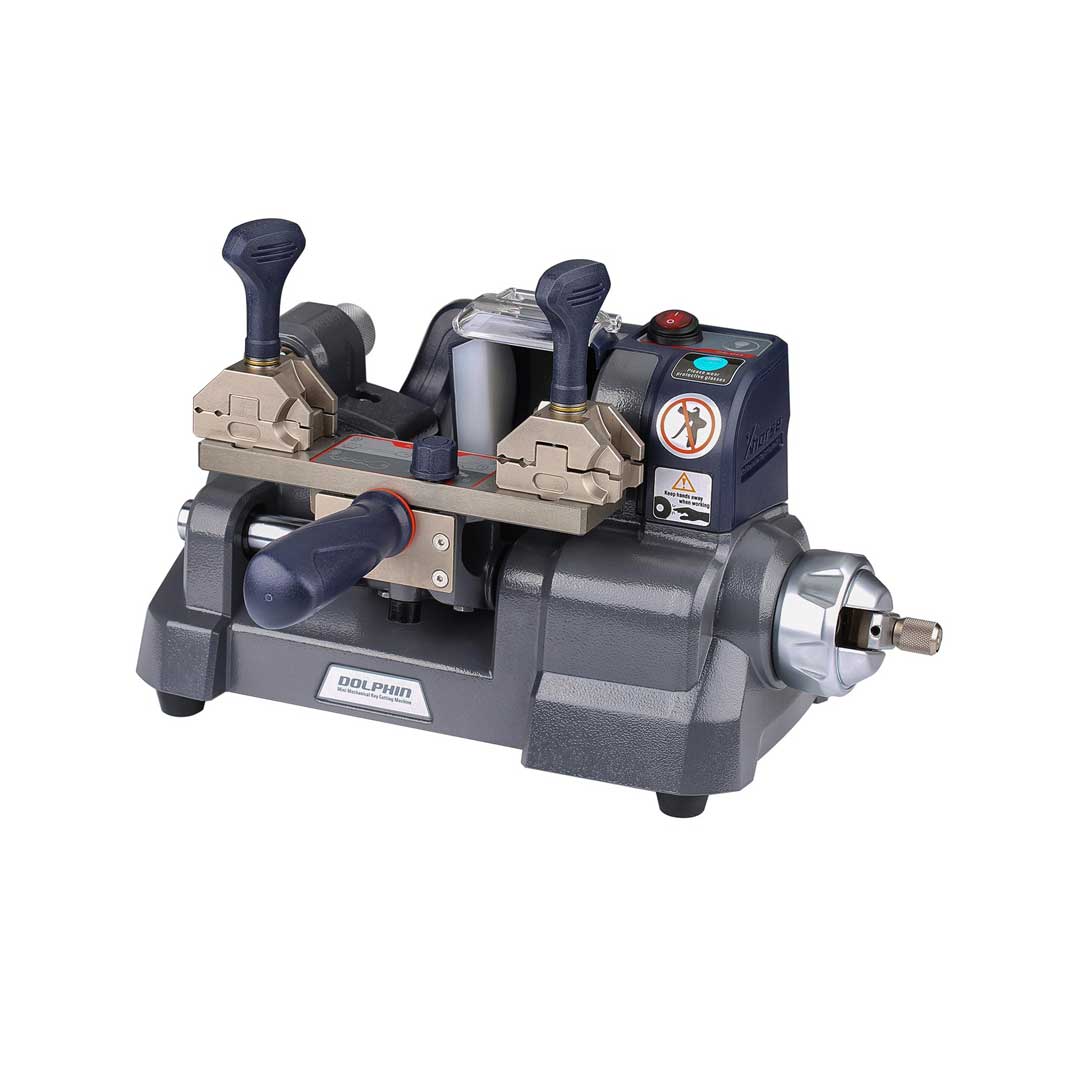

Xhorse Dolphin XP-008 Key Cutting Machine for Special Bit, Double Bit Keys

Xhorse Dolphin XP-008 Key Cutting Machine for Special Bit, Double Bit Keys

DOLPHIN XP-008 is specially designed to duplicate bit keys ,double bit keys,pump keys and safe deposit box keys, which meets the needs of a wide range of locksmiths. Featuring a wide clamp space reaching 115mm, a wide rotation range allowing the bench to rotate 0~45°, ultra-high portability and the all-direction micro-adjustment base.

KEY FEATURES
Special Keys Cutting
Ergonomic Design
Superior Mechanical Structure
All-purpose Clamps
Ultra-high Precision Processing
Easy to Carry


Dolphin XP008 Parameters
Input Frequency: 47-63Hz
Spindle Speed: 1050rpm
Travel of Table: 46mm
Clamp Rotation Angle: 0-45°
Machine Dimensions: 305x185x200mm
Package Dimensions: 435x370x315mm
Power: 145W
Input Voltage: 12V/DC
Motor Torque: 1.32Nm
Net Weight: 10.8kg
Gross Weight: 12.5kg


Designed to Meet Diverse Demands
To meet the needs of a wide range of users, DOLPHIN XP-008 is specially designed to duplicate various bit/pump and safe deposit box keys.

Exceptional Design
Ergonomic design brings users an extraordinary working experience. DOLPHIN XP-008 comes with an LED light, helping users work in different scenes with ease.
Users can complete the lateral cutting feed by simply turning the handwheel which can be entirely concealed inside after duplication.

Efficient Cutting Guaranteed
The spindle speed reaching 1050rpm guarantees high efficiency in cutting. More importantly, it helps minimize the wear and tear of the cutter and ensures high-quality cutting results.

Innovative Micro-adjustment Base
The all-direction micro-adjustment base consisting of a key cutting guide and micro-adjustment knob is innovatively developed, making it possible to achieve ultra-high precision duplicating.

Flexible Clamps
The machine features a wide clamp space reaching 115mm, providing a more flexible experience to clamp different keys with no limits to the stem length. XP-008 also offers a wide rotation range so the rotation bench can rotate 0~45° when turning the handle.This makes sure that keys with different titled angles can be perfectly cut.
