VD24095-Xhorse Digital Multimeter Large Screen

Xhorse Digital Multimeter Large Screen

Item Code: VD24095

Product Categories: Accessories

Manufacturer: Xhorse

Available in Stock

Xhorse Digital Multimeter User Manual PDF

Xhorse Digital Multimeter Large Screen with High Definition High-accuracy Leakage Current Test

The multimeter is a commonly used and practical device that can play an important role in the daily work of locksmiths. Therefore, choosing the most suitable multimeter is very important.

The brand new Xhorse Digital Multimeter has outstanding advantages such as leakage detection without the need for an external power supply. What's more, it is accurate to 0.1μA, which makes it very suitable for friends with remote leakage detection or other similar needs.

Xhorse Digital Multimeter Features:

Large Screen with High Definition

Strong anti-interference capability

High-accuracy leakage current test

Super low power consumption and long endurance
Overload Protection
Easy to Use

Xhorse Digital Multimeter Functions:

Support measuring AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, diode and continuity.
Support fast leakage detection of static leakage current, especially the leakage current of the remotes, no need for external power supply.
Support auto-ranging mode, reducing error rate, simplified and fast.
Support overvoltage and overcurrent alarm prompts, capable of withstanding up to 600V impact.
Support long endurance with a power consumption of less than 3mA and automatic power-saving.
Support measuring low currents with readings accurate to o.1μA.
Support low battery prompt, automatic power supply and battery level detection upon startup.
High-definition large screen LCD backlight display, higher resolutionand accuracy, keep clear display in dark areas.

*Battery is not included. Requires 2x AA batteries.

HD Large Screen
High-definition large screen LCD backlight display, more intuitive operational interaction, and keep the clear display in low-light environments.

Comprehensive Functionality

Xhorse Digital Multimeter can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode and continuity. And it can also effectively achieve useful functions such as data holding, range switching, screen backlight switching, function switching, automatic shutdown, etc.

Leakage Detection

Featured fast detection function, providing a 3V DC power supply. It is accurate to 0.1μA and suitable for static leakage detection of electronic products, especially for remote leakage detection.

Mistest Protection
It can withstand a maximum impact of 600V and equipped with overvoltage and overcurrent alarm prompts.

Long Endurance
It can automatically save power, with an overall power consumption of less than 3mA and a long battery life.

Exquisite details
The design is easy to grip and can prevent slipping. The knob design conforms to user habits and is easy to rotate.

The terminals are located at the front and the functional area is divided in shape to avoid interference.

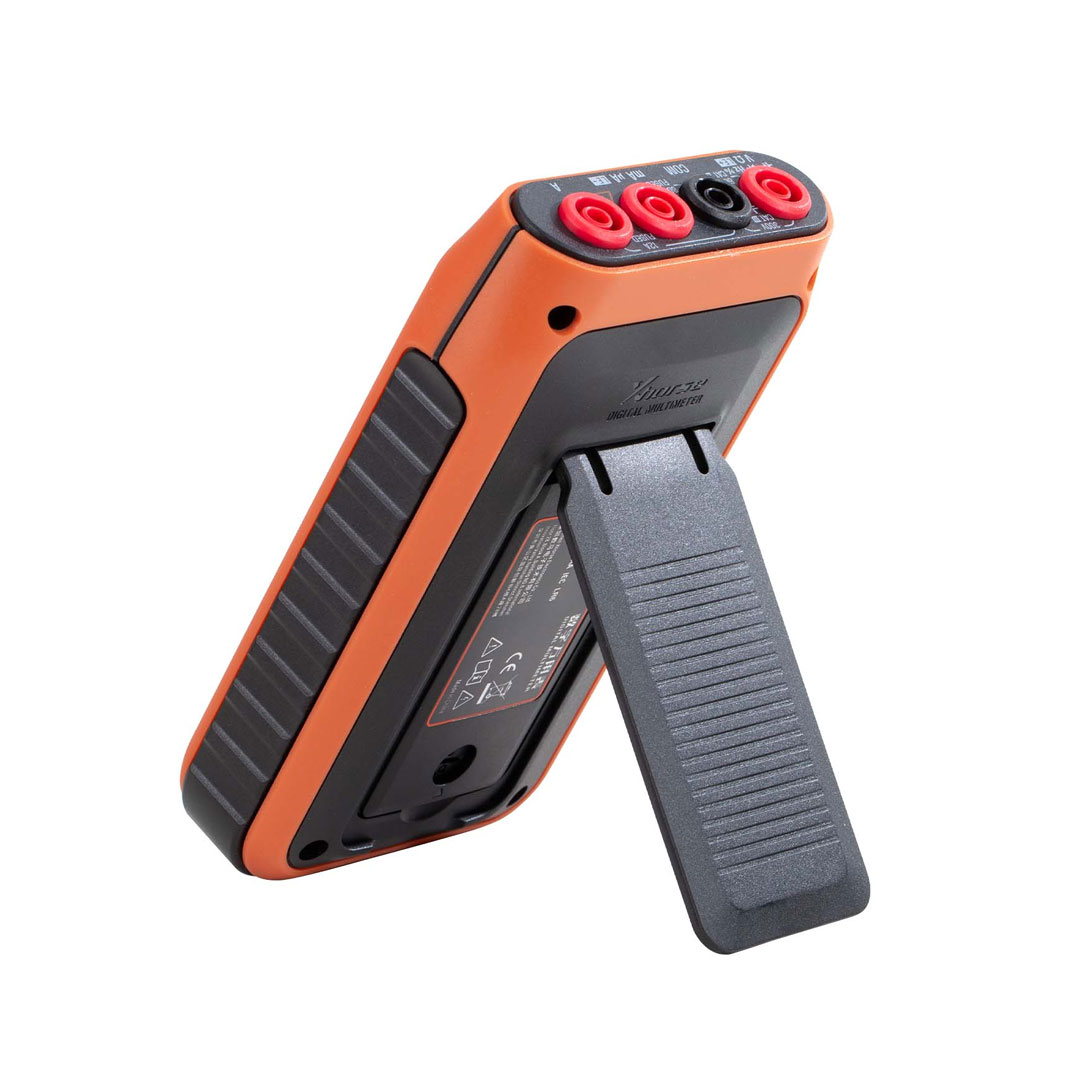

The rear support can be erected at a certain angle to meet various usage conditions.

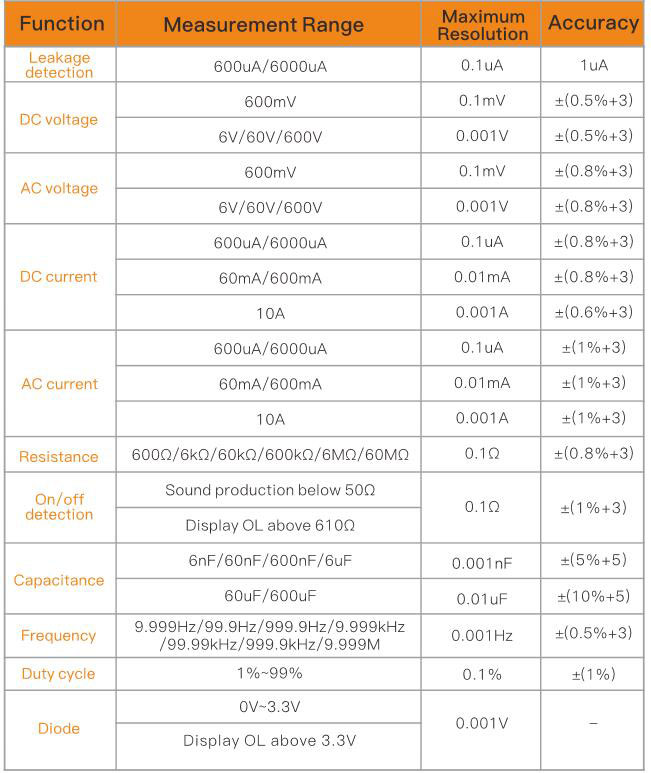

Measurement range
